PV7FWT0 Series
Manufacturer: E-Switch
Beta
⌘K

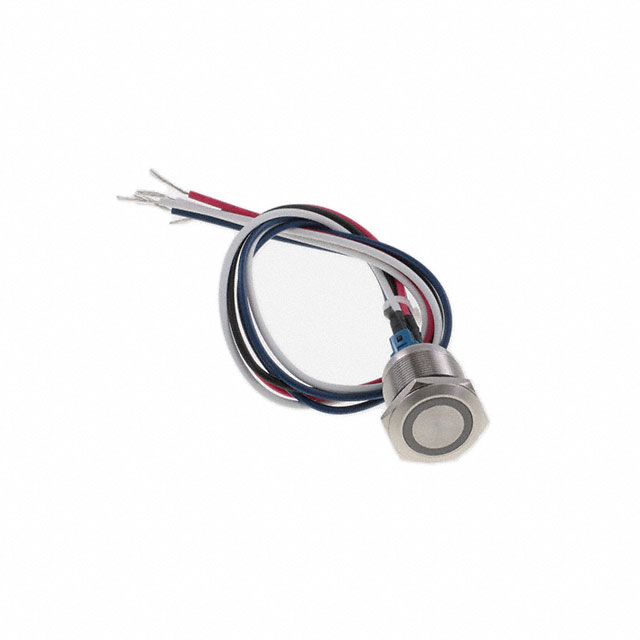

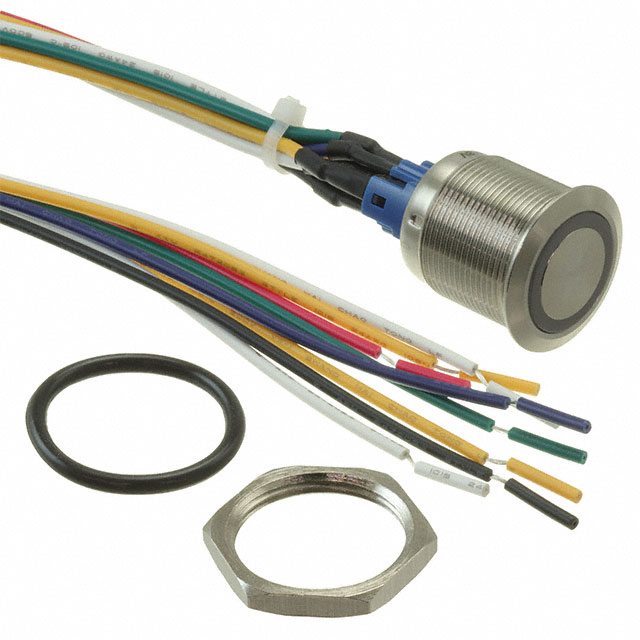

SWITCH PB DPST-NO/NC 2A 48V
| Part | Electrical Life | Mechanical Life | Actuator Type | Current Rating (Amps) | Illumination Type, Color | Switch Function | Color - Actuator/Cap | Mounting Type | Circuit | Ingress Protection | Type | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Termination Style | Actuator Marking | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | 1000000 Cycles | Button Flush Round | 2 A | Blue Green LED Red | Off-On On-Off | Silver | Panel Mount Front | DPST-NO/NC | IP65 - Dust Tight Water Resistant | Anti-Vandal Illuminated | 1.8 VDC 2.8 VDC | 55 °C | -20 ░C | 48 V | Wire Leads | No Marking | 22 mm |
 E-Switch | 50000 Cycles | 1000000 Cycles | Button Flush Round | 2 A | Blue LED | Off-On On-Off | Silver | Panel Mount Front | DPST-NO/NC | IP65 - Dust Tight Water Resistant | Anti-Vandal Illuminated | 2.8 VDC | 55 °C | -20 ░C | 48 V | Wire Leads | No Marking | 22 mm |
