317-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 26POS 0.156

Part	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Number of Rows [custom]	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row	Gender	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Type	Read Out	Termination	Flange Feature

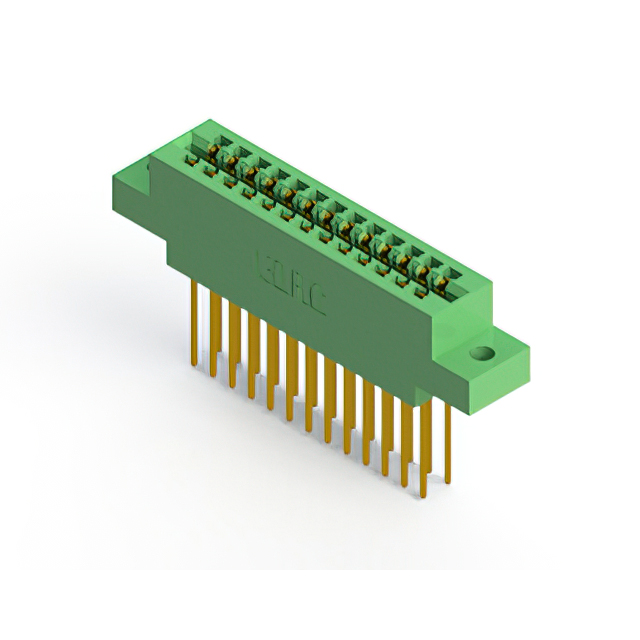

EDAC Inc. 317-026-542-804	Diallyl Phthalate (DAP)	0.156 "	3.96 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	26	2	Green	0.25 Ám	10 Áin	Copper Alloy	13	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Dual	Wire Wrap

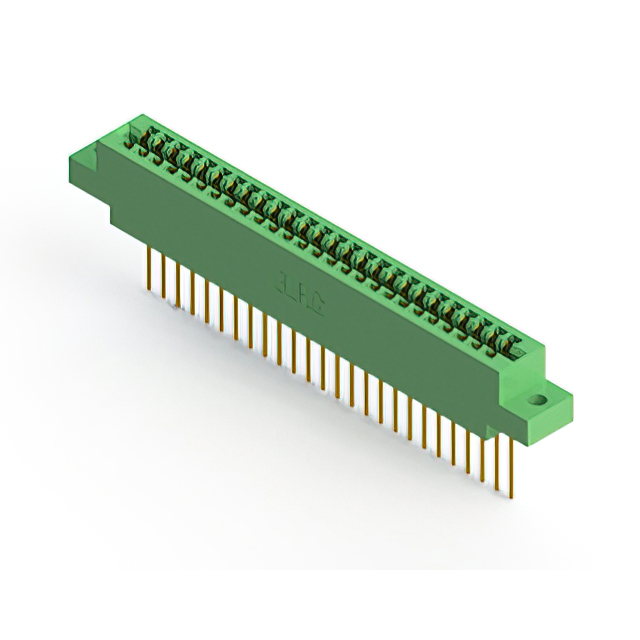

EDAC Inc. 317-026-541-604	Diallyl Phthalate (DAP)	0.156 "	3.96 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	52	2	Green	0.25 Ám	10 Áin	Copper Alloy	26	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Single	Wire Wrap
EDAC Inc. 317-026-541-608	Diallyl Phthalate (DAP)			3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	52	2	Green	0.25 Ám	10 Áin	Copper Alloy	26	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Single	Wire Wrap	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 317-026-542-807	Diallyl Phthalate (DAP)			3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	26	2	Green	0.25 Ám	10 Áin	Copper Alloy	13	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Dual	Wire Wrap	M3 Threaded Insert Top Mount Opening

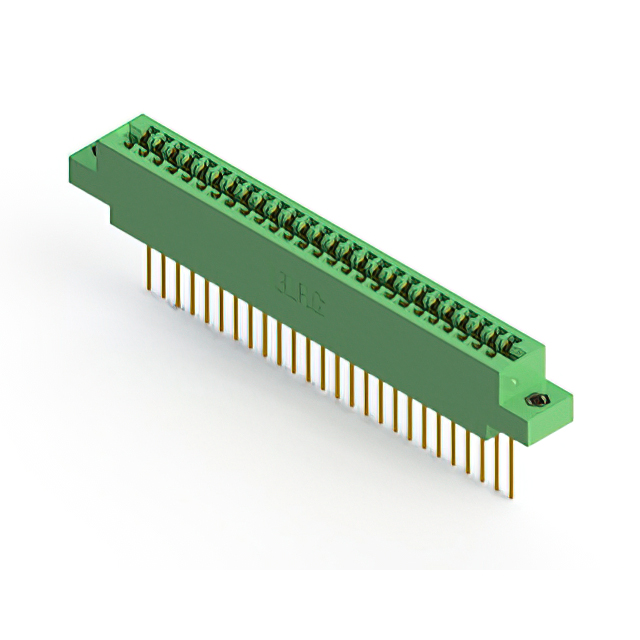

EDAC Inc. 317-026-541-607	Diallyl Phthalate (DAP)			3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	52	2	Green	0.25 Ám	10 Áin	Copper Alloy	26	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Single	Wire Wrap	M3 Threaded Insert Top Mount Opening

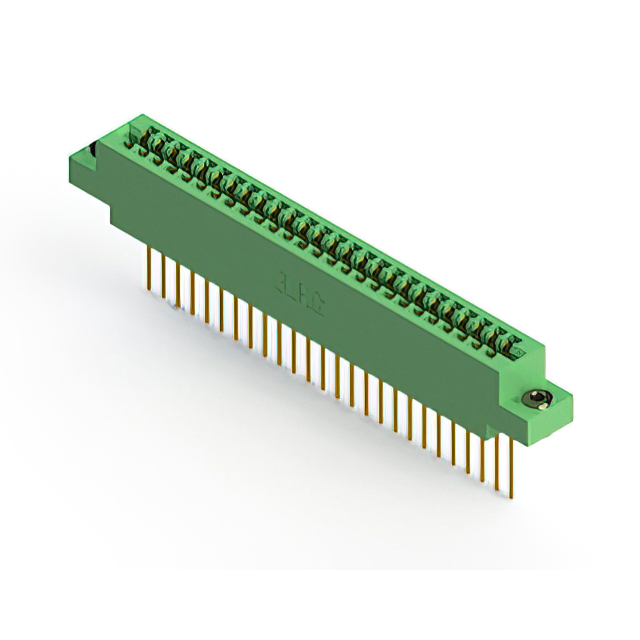

EDAC Inc. 317-026-541-603	Diallyl Phthalate (DAP)	0.116 "	2.95 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	52	2	Green	0.25 Ám	10 Áin	Copper Alloy	26	Female	Through Hole	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Cantilever	Single	Wire Wrap	Floating Bobbin Flush Mount
