T 3359 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN RCPT HSNG FMALE 5POS PNL MT
| Part | Contact Shape | Shell Material | Ingress Protection | Mounting Feature | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Note | Material Flammability Rating | Shell Size - Insert | Features | Number of Positions | Contact Type | Connector Type | Shielding | Contact Size | Orientation | Insert Material | Shell Finish | Fastening Type | Voltage Rating | Current Rating (Amps) | Contact Finish - Mating | Primary Material | Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Circular | Die Cast | IP40 | Bulkhead - Front Side Nut | Silver | -40 C | 100 °C | For Female Sockets | Panel Mount | Contacts Not Included | UL94 V-0 | M16-5(S) | Stereo | 5 | Crimp | Receptacle Housing | Shielded | 1.5 mm | Keyed | Thermoplastic | Nickel | Threaded | ||||||
 Amphenol Tuchel Industrial | Die Cast | IP40 | -40 C | 100 °C | Panel Mount Through Hole | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Solder | Silver | |||||||||
 Amphenol Tuchel Industrial | Die Cast | IP40 | -40 C | 100 °C | Panel Mount Through Hole | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Solder | Silver | |||||||||
 Amphenol Tuchel Industrial | Die Cast | IP40 | -40 C | 100 °C | Panel Mount Through Hole | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Solder | Silver | |||||||||

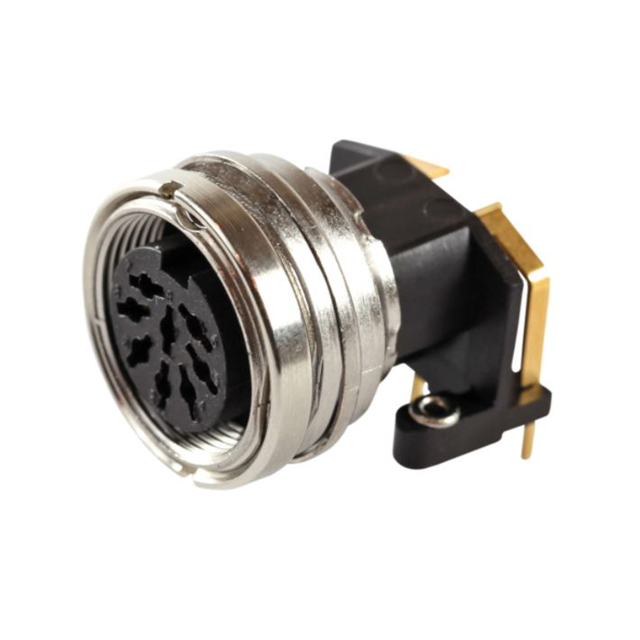

 Amphenol Tuchel Industrial | Die Cast | IP40 | -40 C | 100 °C | Panel Mount Right Angle Through Hole | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Solder | Silver | |||||||||
 Amphenol Tuchel Industrial | Die Cast | IP40 | -40 C | 100 °C | Panel Mount Through Hole | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Solder | Silver | |||||||||
Amphenol Tuchel Industrial | Die Cast | IP40 | Bulkhead - Front Side Nut | -40 C | 100 °C | Panel Mount | M16-5(S) | Stereo | 5 | Receptacle Female Sockets | Shielded | Keyed | Nickel | Threaded | 250 V | 7 A | Silver | Metal | Silver |
