8135 Series
Manufacturer: Belden Inc.
Beta
⌘K

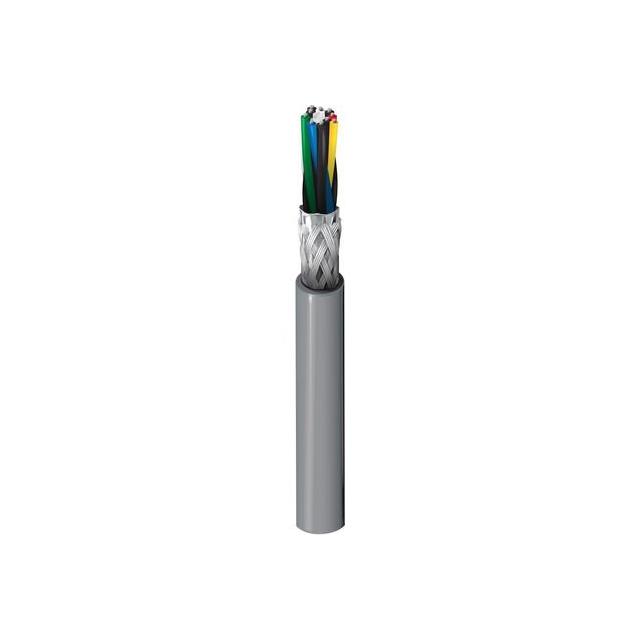

MULTI-PAIR 10COND 28AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Ratings | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Usage | Conductor Insulation | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length | Length | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 28 AWG | UL Style 2919 | Drain Wire | 7.32 mm | 0.288 " | 10 | 80 °C | -30 ░C | Chrome | Computer | Foam Polyethylene (FPE) | Copper Tinned | 7 | 36 AWG | Multi-Pair | 304.8 m | 1000 ft | Braid Foil | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 28 AWG | UL Style 2919 | Drain Wire | 7.32 mm | 0.288 " | 10 | 80 °C | -30 ░C | Chrome | Computer | Foam Polyethylene (FPE) | Copper Tinned | 7 | 36 AWG | Multi-Pair | Braid Foil | 100 ft | 30.5 m |
