kmf Series

Catalog

CONNECTOR: AC SUPPLY; SOCKET; MALE; 4A; 250VAC; C18; KMF; IEC 60320

Part	Filter Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Current Rating - Filter	Approval Agency	Termination	Termination	Termination	Mounting Type	Connector Style	Connector Type	Switch Features	Material Flammability Rating	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Features

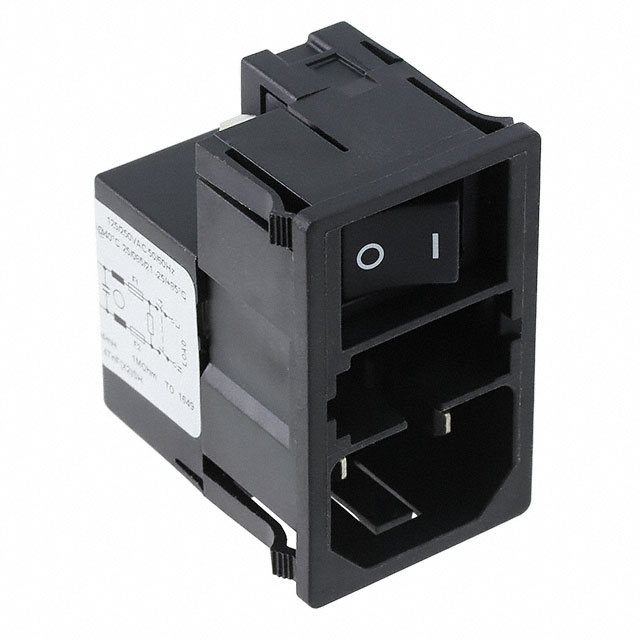

SCHURTER Inc. KMF0.2143.11	Filtered (EMI RFI) - Commercial Medical	10 A	Fuse Holder	4 A	CCC cURus ENEC	0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In	IEC 320-C18	Receptacle Male Blades - Module	Switch On-Off	UL94 V-0	250 VAC	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	IP40

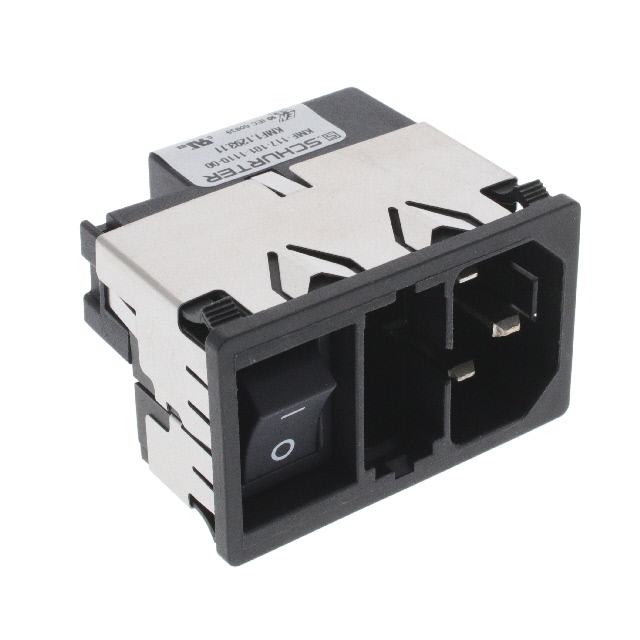

SCHURTER Inc. KMF1.1293.11	Filtered (EMI RFI) - Commercial Medical	10 A	Drawer Sold Separate	10 A	CCC cULus ENEC	0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In	IEC 320-C14	Receptacle Male Blades - Module	Switch On-Off	UL94 V-0	250 VAC	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	IP40	Shielded
SCHURTER Inc. KMF1.1211.11	Filtered (EMI RFI) - Commercial	10 A	Drawer Sold Separate	1 A	CCC cULus ENEC	0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In	IEC 320-C14	Receptacle Male Blades - Module	Switch On-Off	UL94 V-0	250 VAC	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	IP40	Shielded

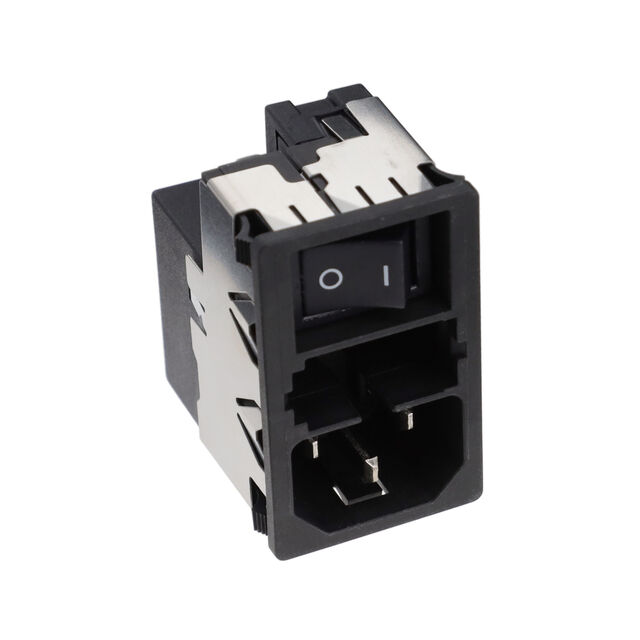

SCHURTER Inc. KMF1.1243.11	Filtered (EMI RFI) - Commercial Medical	10 A	Drawer Sold Separate	4 A	CCC cULus ENEC	0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In	IEC 320-C14	Receptacle Male Blades - Module	Switch On-Off	UL94 V-0	250 VAC	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	IP40	Shielded
SCHURTER Inc. KMF1.1121.1101						0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In						2.5 mm	0.039 in	0.098 in	1 mm				Shielded
SCHURTER Inc. KMF1.1263.11	Filtered (EMI RFI) - Commercial Medical	10 A	Drawer Sold Separate	6 A	CCC cULus ENEC	0.189 "	4.8 mm	Quick Connect	Panel Mount Snap-In	IEC 320-C14	Receptacle Male Blades - Module	Switch On-Off	UL94 V-0	250 VAC	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	IP40	Shielded
