745-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K

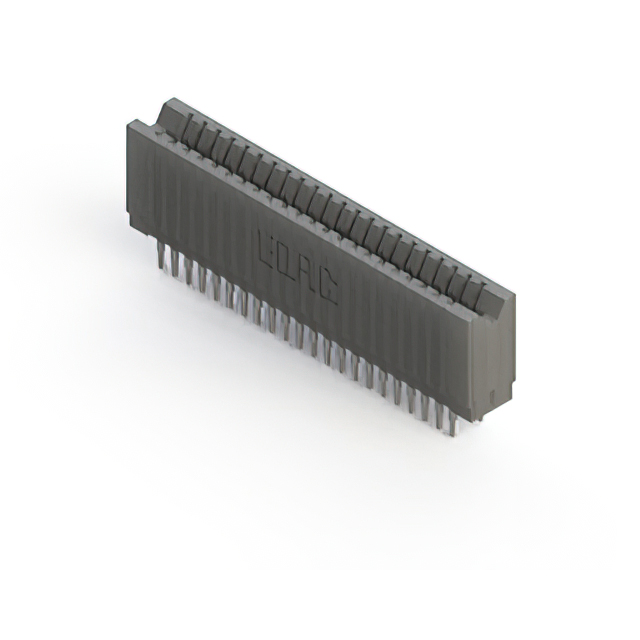

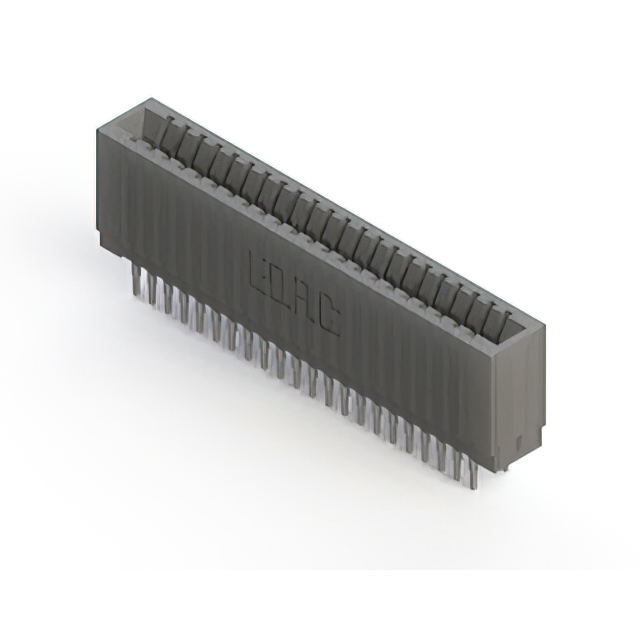

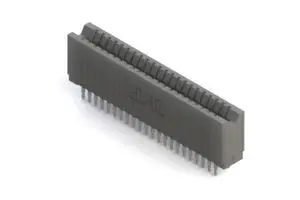

CONN EDGE DUAL FMALE 44POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Read Out | Contact Finish Thickness | Contact Finish Thickness | Gender | Card Type | Contact Material | Pitch | Pitch | Mounting Type | Contact Type | Number of Rows [custom] | Termination | Color | Contact Finish | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Single | 30 Áin | 0.76 Ám | Female | Non Specified - Single Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | Press-Fit | Black | Gold | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit Wire Wrap | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | 44 | Dual | 30 Áin | 0.76 Ám | Female | Non Specified - Dual Edge | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Cantilever | 2 | Press-Fit Wire Wrap | Black | Gold | 22 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
