OSTTE05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 5POS SIDE ENT 3.5MM PCB
| Part | Screw Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating | Housing Material | Screw Thread | Current | Number of Levels | Pitch | Pitch | Mating Orientation | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Features | Color | Voltage | Mounting Type | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

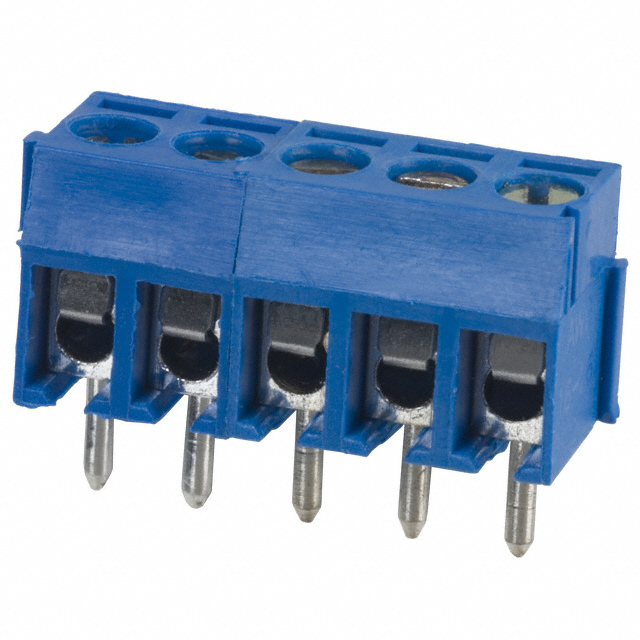

 On Shore Technology Inc. | Steel - Zinc Plated | 1.7 Lb-In | 0.2 Nm | -30 ░C | 105 ░C | Stainless Steel | Brass - Tin Plated | Thermoplastic | M2 | 10 A | 1 | 3.5 mm | 0.138 " | Horizontal with Board | Screw - Leaf Spring Wire Guard | 26 AWG | 16 AWG | Interlocking (Side) | Blue | 125 V | Through Hole | 5 |
 On Shore Technology Inc. | Steel - Zinc Plated | 1.7 Lb-In | 0.2 Nm | -40 C | 115 °C | Stainless Steel | Brass - Tin Plated | M2 | 10 A | 1 | 7 mm | 0.276 in | Horizontal with Board | Screw - Leaf Spring Wire Guard | 26 AWG | 16 AWG | Interlocking (Side) | 125 V | Through Hole | 5 |
