FB10S045 Series

Catalog

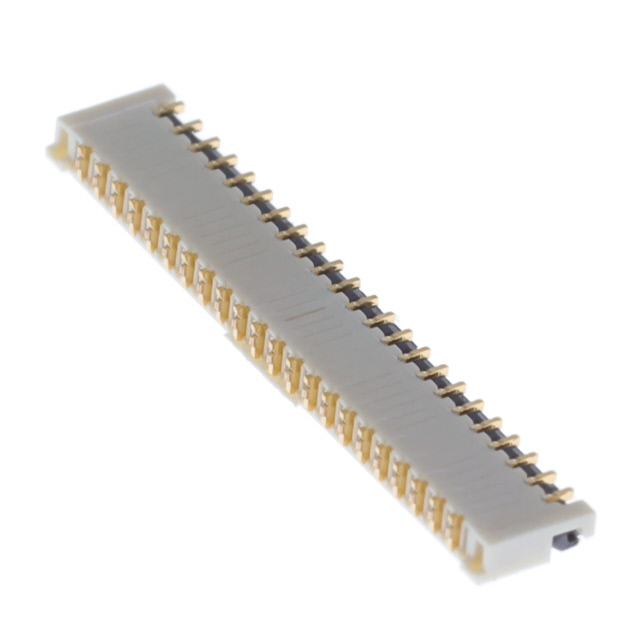

CONN FPC BOTTOM 45POS 0.3MM R/A

Part	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Housing Color	Actuator Color	Actuator Material	FFC, FCB Thickness [custom]	Termination	Contact Finish	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Pitch	Pitch	Mounting Type	Number of Positions	Housing Material	Locking Feature	Contact Material	Voltage Rating	Cable End Type	Connector/Contact Type
JAE Electronics FB10S045JT1R6000	0.35 A	1.25 Áin	0.03 Ám	20	White	Black	Plastic	0.2 mm	Solder	Gold	0.88 mm	0.035 in	85 °C	-40 C	FPC	0.012 in	0.3 mm	Right Angle Surface Mount	45	Plastic	Flip Lock	Phosphor Bronze	50 V	Tabbed or Tapered	Contacts Bottom
