R14155 Series

Catalog

BNC / BULKHEAD JACK RECEPTACLE F

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Body Finish	Center Contact Plating	Mating Cycles	Voltage Rating	Housing Color	Features	Connector Type	Impedance	Fastening Type	Number of Ports	Connector Style	Shield Termination	Mounting Type	Frequency - Max [Max]	Contact Termination	Center Contact Material	Mounting Feature	Includes
Radiall USA, Inc. R141557000W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Gold	500	500 V	Silver	Extended Insulation	Female Socket Jack	50 Ohms	Bayonet Lock	1	BNC	Solder	Panel Mount	4 GHz	Solder Cup	Beryllium Copper	Bulkhead - Rear Side Nut

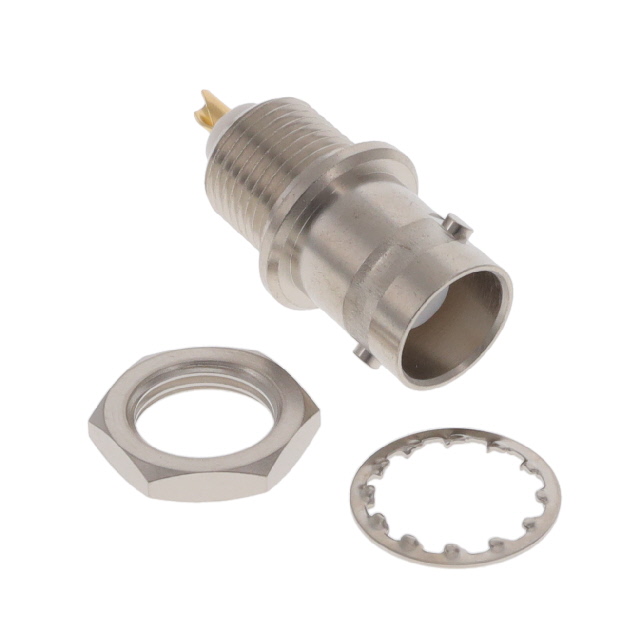

Radiall USA, Inc. R141554000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Gold	500	500 V	Silver	Extended Insulation	Female Socket Jack	50 Ohms	Bayonet Lock	1	BNC	Solder	Panel Mount	4 GHz	Solder Cup	Beryllium Copper	Bulkhead - Rear Side Nut

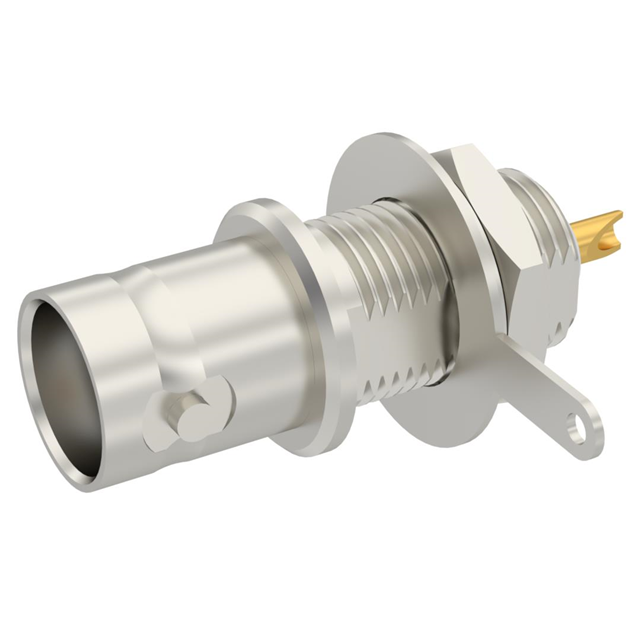

Radiall USA, Inc. R141559000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Gold		500 V	Silver	Extended Insulation	Female Socket Jack	50 Ohms	Bayonet Lock	1	BNC	Solder	Panel Mount	4 GHz	Solder Cup	Beryllium Copper	Bulkhead - Rear Side Nut

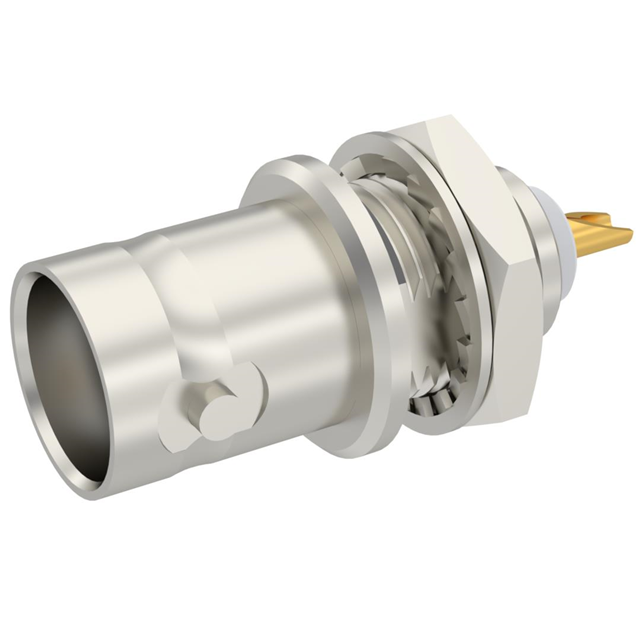

Radiall USA, Inc. R141557007	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	White Bronze	Gold	500	500 V	Silver	Extended Insulation	Female Socket Jack	50 Ohms	Bayonet Lock	1	BNC	Solder	Panel Mount	4 GHz	Solder Cup	Beryllium Copper	Bulkhead - Rear Side Nut

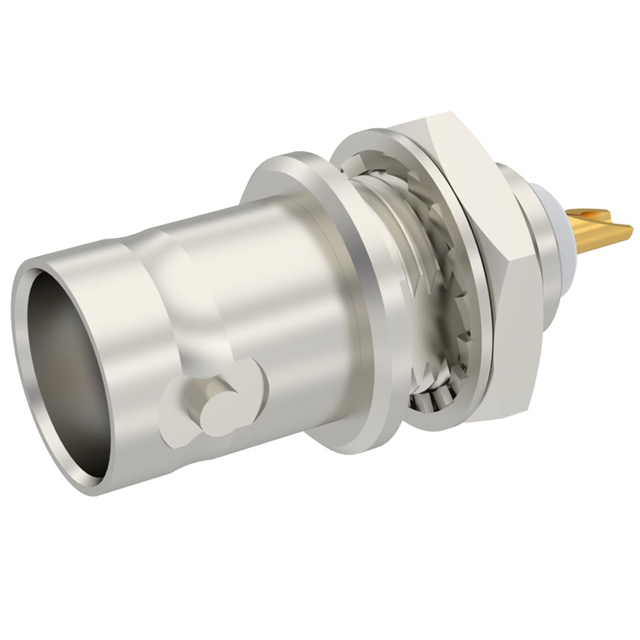

Radiall USA, Inc. R141557000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Gold	500	500 V	Silver		Female Socket Jack	50 Ohms	Bayonet Lock	1	BNC	Solder	Panel Mount	4 GHz	Solder Cup	Beryllium Copper	Bulkhead - Rear Side Nut	1 Connector 1 Lockwasher 1 Nut
