325-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 54POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Gender	Number of Positions	Card Thickness	Card Thickness	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Pitch	Pitch	Number of Rows [custom]	Contact Material	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Finish	Termination Rows	Number of Rows	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

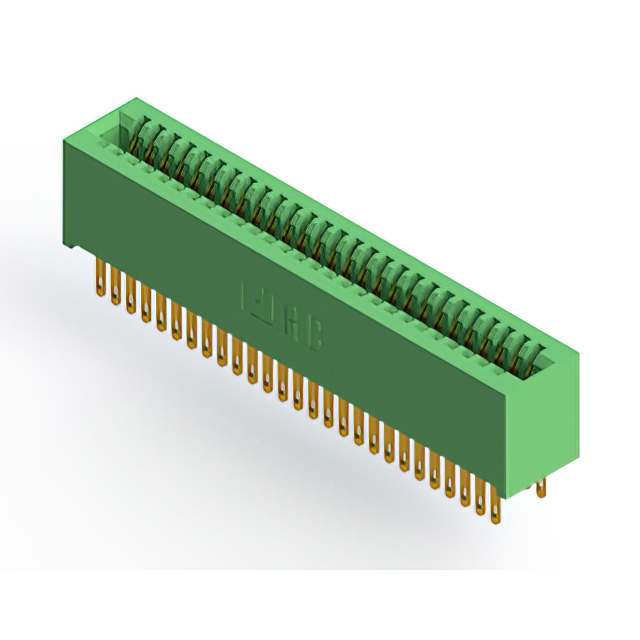

EDAC Inc. 325-054-500-201	Diallyl Phthalate (DAP)	2	Green	Female	54	3.18 mm	0.125 in	Solder Eyelet(s)	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	2	Copper Alloy	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	54	Gold
EDAC Inc. 325-054-520-108	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Solder	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1	4-40 Flush Mount Threaded Insert Top Opening

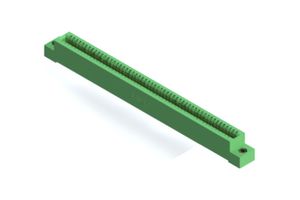

EDAC Inc. 325-054-520-107	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Solder	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1	Flush Mount M3 Threaded Insert Top Opening

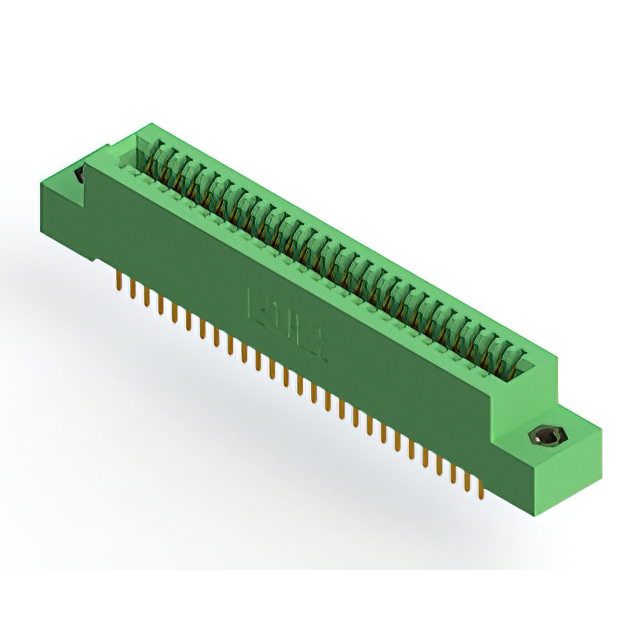

EDAC Inc. 325-054-520-208	Diallyl Phthalate (DAP)	2	Green	Female	54	3.18 mm	0.125 in	Solder	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	2	Copper Alloy	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	54	Gold			4-40 Flush Mount Threaded Insert Top Opening

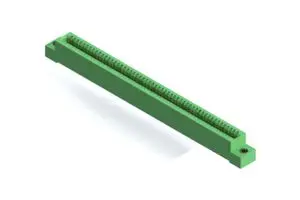

EDAC Inc. 325-054-500-107	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Solder Eyelet(s)	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-054-520-109	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Solder	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
EDAC Inc. 325-054-540-109	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Wire Wrap	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
EDAC Inc. 325-054-500-208	Diallyl Phthalate (DAP)	2	Green	Female	54	3.18 mm	0.125 in	Solder Eyelet(s)	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	2	Copper Alloy	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	54	Gold			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-054-500-101	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Solder Eyelet(s)	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1
EDAC Inc. 325-054-540-101	Diallyl Phthalate (DAP)		Green	Female	54	3.18 mm	0.125 in	Wire Wrap	Through Hole	-65 ░C	125 °C	Single	0.1 "	2.54 mm		Copper Alloy	Non Specified - Single Edge	Cantilever	0.25 Ám	10 Áin	54	Gold	1	1
