160449 Series

Catalog

250 FASTIN-ON REC.

Part	Wire Gauge [Min]	Wire Gauge [Max]	Gender	Length - Overall [x]	Length - Overall [x]	Termination	Tab Width	Tab Width	Mounting Type	Tab Thickness	Tab Thickness	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Terminal Type	Contact Material	Contact Finish	Tab Length	Tab Length	Insulation

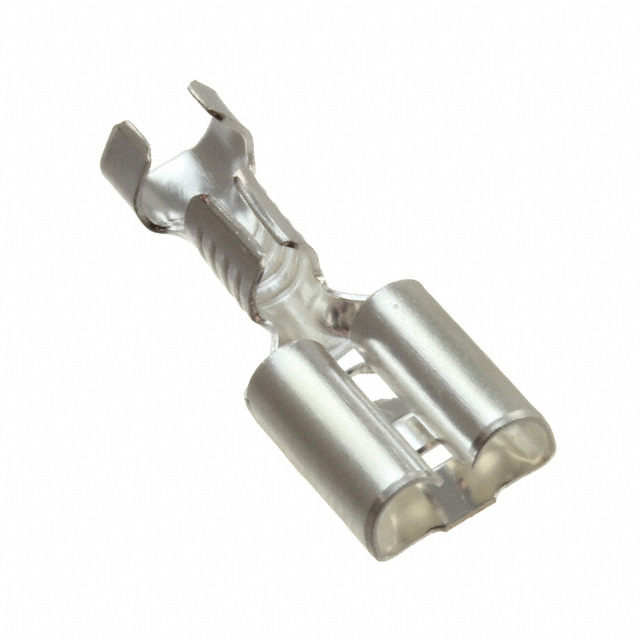

TE Connectivity Raychem Cable Protection 6-160449-3	14 AWG	17 AWG	Female	0.756 in	19.2 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	0.032 in	0.81 mm	5.1 mm	0.201 in	0.134 in	3.4 mm	Standard	Phosphor Bronze	Silver	7.75 mm	0.305 in	Non-Insulated
TE Connectivity Raychem Cable Protection 6-160449-2	14 AWG	17 AWG	Female	0.756 in	19.2 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	0.032 in	0.81 mm	5.1 mm	0.201 in	0.134 in	3.4 mm	Standard	Phosphor Bronze	Tin	7.75 mm	0.305 in	Non-Insulated
