837-076 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 76POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Type	Contact Type	Contact Material	Flange Feature	Number of Positions	Read Out	Termination	Contact Finish	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Gender	Color	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 837-076-541-808	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	4-40 Threaded Insert Top Mount Opening	76	Dual	Wire Wrap	Gold	3.96 mm	0.156 in	38	Female	Green	2
EDAC Inc. 837-076-520-202	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	76	Dual	Solder	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.25 mm	0.128 "
EDAC Inc. 837-076-541-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	76	Dual	Wire Wrap	Gold	3.96 mm	0.156 in	38	Female	Green	2
EDAC Inc. 837-076-560-802	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Board Edge Straddle Mount	Non Specified - Dual Edge	Cantilever	Copper Alloy		76	Dual	Solder	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.25 mm	0.128 "	Card Extender
EDAC Inc. 837-076-544-804	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy		76	Dual	Wire Wrap	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.96 mm	0.156 "
EDAC Inc. 837-076-542-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	76	Dual	Wire Wrap	Gold	3.96 mm	0.156 in	38	Female	Green	2
EDAC Inc. 837-076-559-812	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Right Angle Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	Side Mount Opening Unthreaded	76	Dual	Solder	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.25 mm	0.128 "

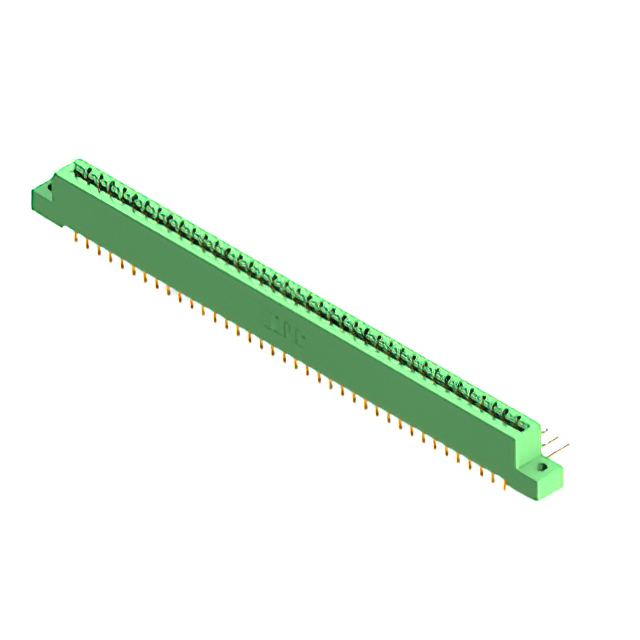

EDAC Inc. 837-076-558-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Right Angle Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	76	Dual	Solder	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.96 mm	0.156 "
EDAC Inc. 837-076-520-212	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy	Flush Mount Side Opening Unthreaded	76	Dual	Solder	Gold	3.96 mm	0.156 in	38	Female	Green	2	3.25 mm	0.128 "
EDAC Inc. 837-076-542-201	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Through Hole	Non Specified - Dual Edge	Cantilever	Copper Alloy		76	Dual	Wire Wrap	Gold	3.96 mm	0.156 in	38	Female	Green	2
