VBPW34 Series

Catalog

SENSOR PHOTODIODE 950NM 2SMD GW

Part	Active Area	Spectral Range [Min] [x]	Spectral Range [Max] [x]	Diode Type	Mounting Type	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Viewing Angle	Current - Dark (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Min]	Spectral Range [Max]

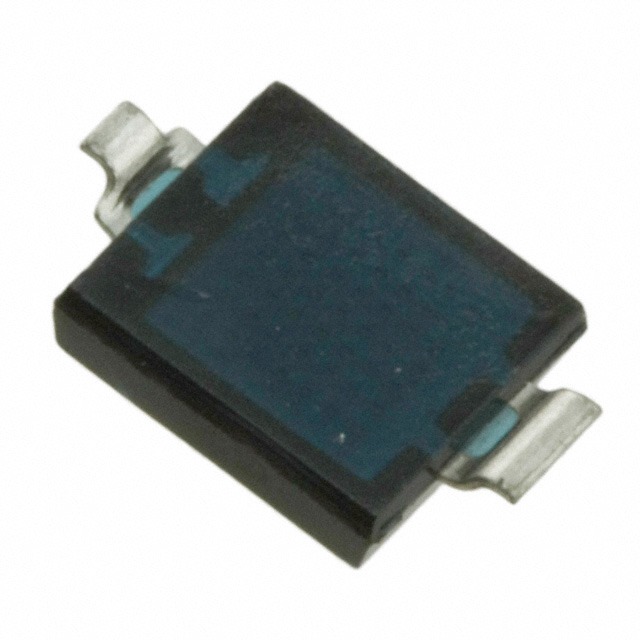

Vishay General Semiconductor - Diodes Division VBPW34FAS	7.5 mm˛	780 nm	1050 nm	PIN	Surface Mount	2-SMD Gull Wing	60 V	950 nm	130 °	2 nA	100 °C	-40 °C

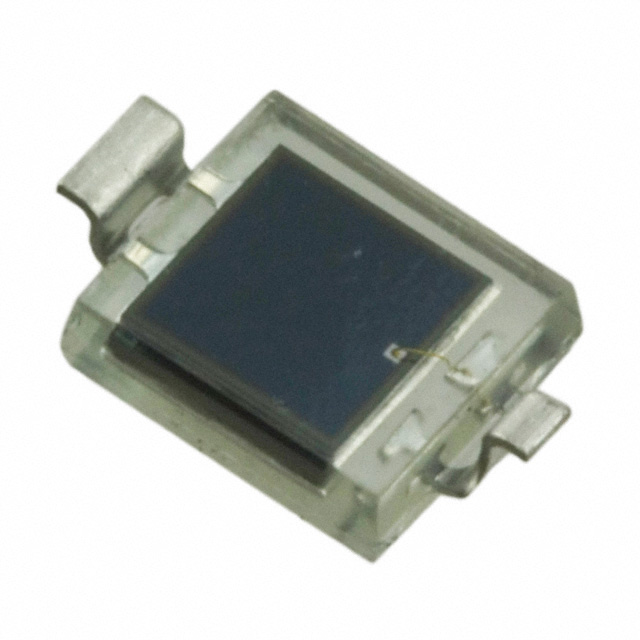

Vishay General Semiconductor - Diodes Division VBPW34SR	7.5 mm˛			PIN	Surface Mount	2-SMD Z-Bend	60 V	940 nm	130 °	2 nA	100 °C	-40 °C	430 nm	1100 nm

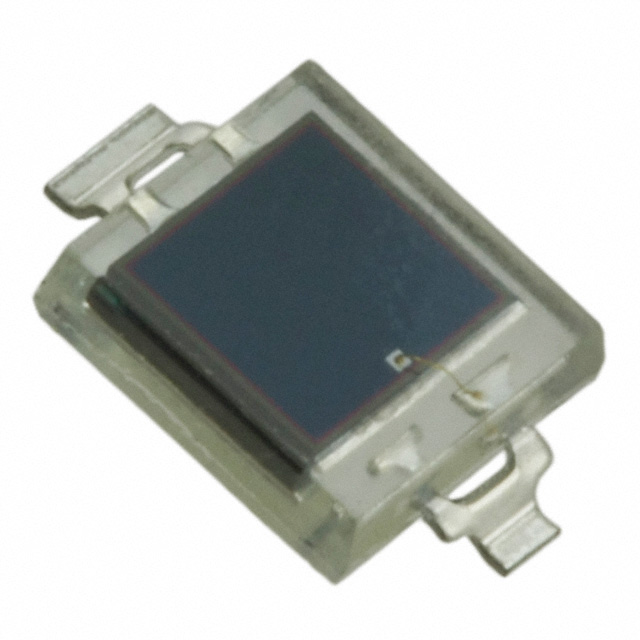

Vishay General Semiconductor - Diodes Division VBPW34S	7.5 mm˛			PIN	Surface Mount	2-SMD Gull Wing	60 V	940 nm	130 °	2 nA	100 °C	-40 °C	430 nm	1100 nm
Vishay General Semiconductor - Diodes Division VBPW34FASR	7.5 mm˛	780 nm	1050 nm	PIN	Surface Mount	2-SMD Z-Bend	60 V	950 nm	130 °	2 nA	100 °C	-40 °C
