19362 Series
Manufacturer: Belden Inc.
Beta
⌘K

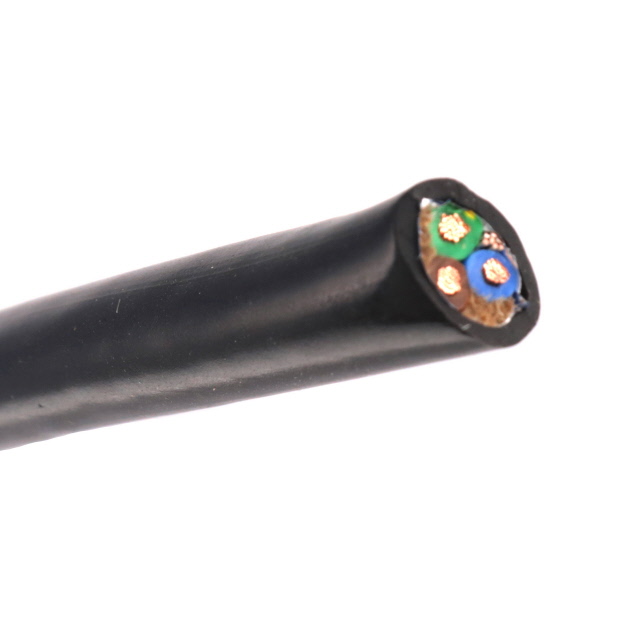

CABLE 3COND 18AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket Color | Wire Gauge | Cable Type | Voltage | Ratings | Length | Length | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Material | Number of Conductors | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 0.05 in | 1.27 mm | Copper Bare | 8.64 mm | 0.34 " | Foil | Black | 18 AWG | Multi-Conductor | 300 VDC | UL Style SJT | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 34 | 42 | Drain Wire | Poly-Vinyl Chloride (PVC) | 3 | Cord and Cordset |
 Belden Inc. | 100 % | Aluminum | 0.05 in | 1.27 mm | Copper Bare | 8.64 mm | 0.34 " | Foil | Black | 18 AWG | Multi-Conductor | 300 VDC | UL Style SJT | 76.2 m | 250 ft | Poly-Vinyl Chloride (PVC) | 34 | 42 | Drain Wire | Poly-Vinyl Chloride (PVC) | 3 | Cord and Cordset |
