UCC27212 Series

4-A, 120-V half bridge gate driver with 5-V UVLO and negative voltage handling

Catalog

4-A, 120-V half bridge gate driver with 5-V UVLO and negative voltage handling

Part	Gate Type	Rise / Fall Time (Typ)	Package / Case	Channel Type	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Logic Voltage - VIL, VIH	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Input Type	Mounting Type	Supplied Contents	Function	Type	Utilized IC / Part	Contents
Texas Instruments UCC27212DPRT	MOSFET (N-Channel) N-Channel MOSFET	6 ns 7.8 ns	10-WDFN Exposed Pad	Independent	2	-40 °C	140 °C	1.6 V 2.3 V	Half-Bridge	100 V	17 V	7 V	10-WSON (4x4)	4 A	4 A	Non-Inverting	Surface Mount

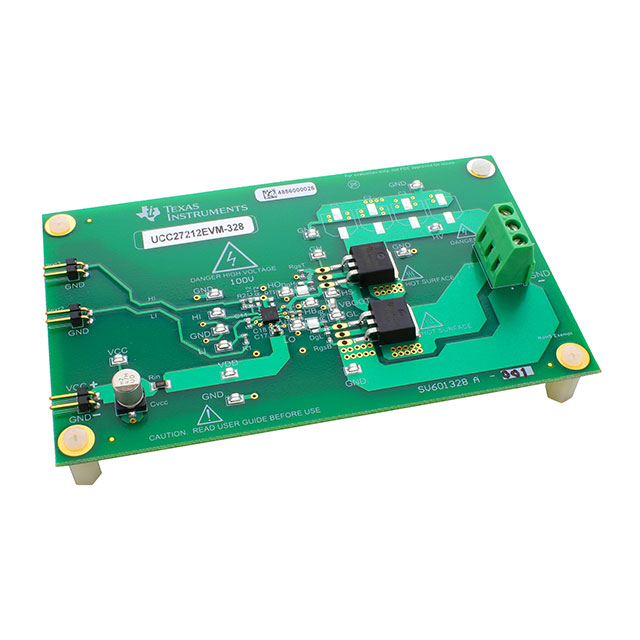

Texas Instruments UCC27212EVM-328																		Board(s)	Half H-Bridge Driver (External FET)	Power Management	UCC27212	Board(s)
Texas Instruments UCC27212DPRR	MOSFET (N-Channel) N-Channel MOSFET	6 ns 7.8 ns	10-WDFN Exposed Pad	Independent	2	-40 °C	140 °C	1.6 V 2.3 V	Half-Bridge	120 V	17 V	7 V	10-WSON (4x4)	4 A	4 A	Non-Inverting	Surface Mount

Catalog

4-A, 120-V half bridge gate driver with 5-V UVLO and negative voltage handling

Description

The UCC27212 device has a peak output current of 3.7A source and 4.5A sink, which allows for the ability to drive large power MOSFETs. The device features an on-chip 120V rated bootstrap diode eliminating the need for external discrete diodes. The input structure can directly handle –10V, which increases robustness and is also independent of supply voltage. The UCC27212 offers 5V turn-off UVLO which helps lower power losses and increased input hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The switching node of the UCC27212 (HS pin) can handle –(24 – VDD)V maximum, which allows the high-side channel to be protected from inherent negative voltages. The UCC27212 device has a peak output current of 3.7A source and 4.5A sink, which allows for the ability to drive large power MOSFETs. The device features an on-chip 120V rated bootstrap diode eliminating the need for external discrete diodes. The input structure can directly handle –10V, which increases robustness and is also independent of supply voltage. The UCC27212 offers 5V turn-off UVLO which helps lower power losses and increased input hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The switching node of the UCC27212 (HS pin) can handle –(24 – VDD)V maximum, which allows the high-side channel to be protected from inherent negative voltages.
