WMS-14 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

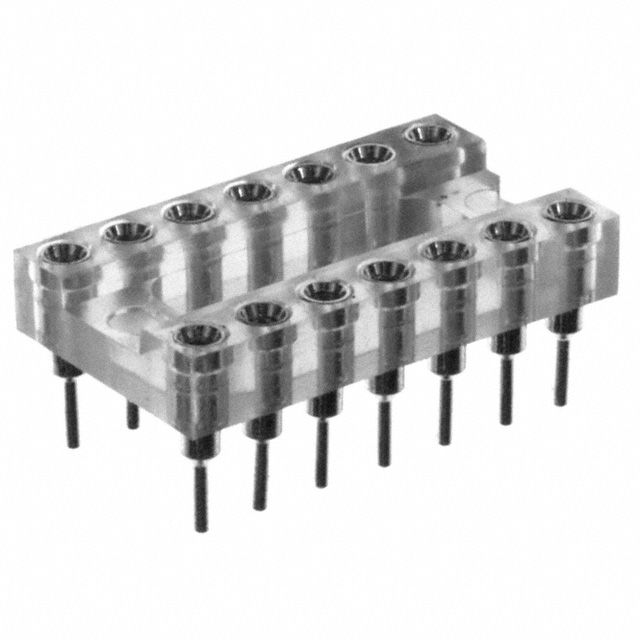

CONN IC DIP SOCKET 14POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Pitch - Post | Pitch - Post | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Contact Finish - Post | Contact Finish - Mating | Type | Type | Type | Termination | Contact Material - Post [custom] | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | 3 A | UL94 V-0 | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | 200 µin | 5.08 µm | Open Frame Wash Away | 0.1 " | 2.54 mm | -40 C | 105 ░C | 14 | Tin | Gold | 7.62 mm | 0.3 in | DIP | Solder | Brass | Flash |
