35618 Series

Catalog

HOOK-UP STRND 18AWG RED 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Material	Length	Length	Wire Gauge	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 35618 002500	0.109 in	2.77 mm	UL Style 3173	Copper Tinned	15.24 m 152.4 m	50 ft 500 ft	18 AWG	Polyethylene (XLPE) Irradiated	100 ft	30.5 m	0.03 in	0.76 mm	600 V	Red	Hook-Up	16	30 AWG

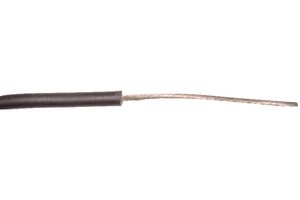

Belden Inc. 35618 010500	0.109 in	2.77 mm	UL Style 3173	Copper Tinned	15.24 m 152.4 m	50 ft 500 ft	18 AWG	Polyethylene (XLPE) Irradiated	100 ft	30.5 m	0.03 in	0.76 mm	600 V	Black	Hook-Up	16	30 AWG
Belden Inc. 35618 004500	0.109 in	2.77 mm	UL Style 3173	Copper Tinned	152.4 m	500 ft	18 AWG	Polyethylene (XLPE) Irradiated			0.032 in	0.81 mm	600 V	Yellow	Hook-Up	16	30 AWG
Belden Inc. 35618 0035000	0.109 in	2.77 mm	UL Style 3173	Copper Tinned			18 AWG	Polyethylene (XLPE) Irradiated			0.032 in	0.81 mm	600 V	Orange	Hook-Up	16	30 AWG
Belden Inc. 35618 0095000	0.109 in	2.77 mm	UL Style 3173	Copper Tinned			18 AWG	Polyethylene (XLPE) Irradiated			0.032 in	0.81 mm	600 V	White	Hook-Up	16	30 AWG
