087437 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 6POS 1.5MM

Part	Fastening Type	Termination	Mounting Type	Connector Type	Applications	Insulation Material	Mated Stacking Heights	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Contact Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Insulation Height	Insulation Height	Number of Positions	Style	Contact Finish - Post	Features	Contact Finish - Mating

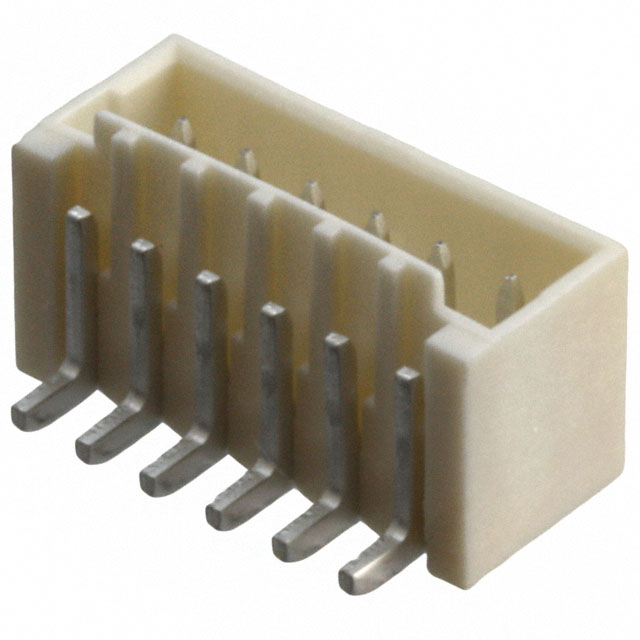

Molex 0874370643	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	6	Board to Cable/Wire	Tin

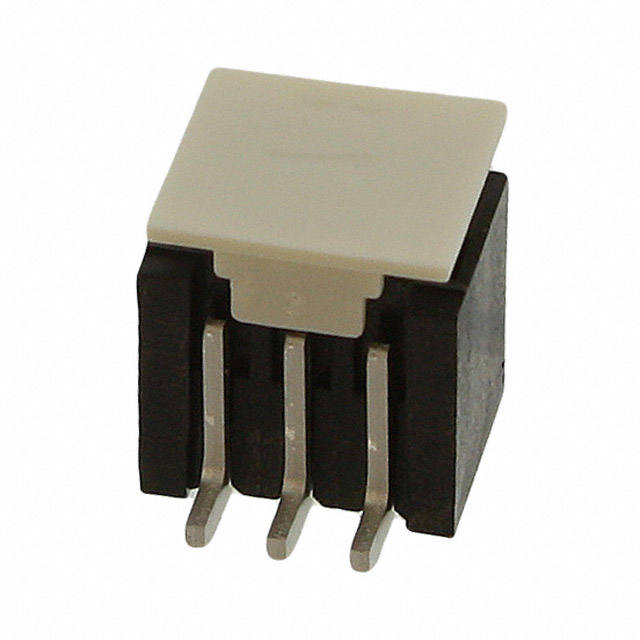

Molex 0874370363	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Glass Filled Nylon Polyamide (PA)	7.4 mm	Black	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm		Board to Cable/Wire	Tin	Pick and Place
Molex 0874371342	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	13	Board to Cable/Wire	Tin
Molex 0874370942	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	9	Board to Cable/Wire	Tin

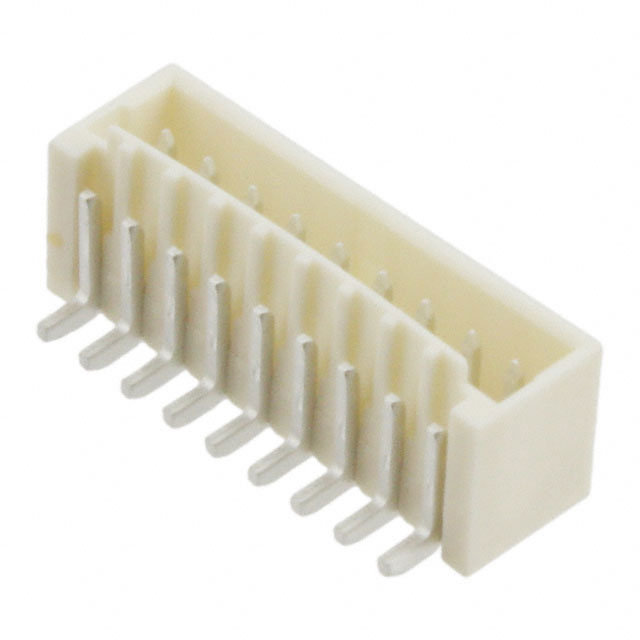

Molex 0874370943	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	9	Board to Cable/Wire	Tin

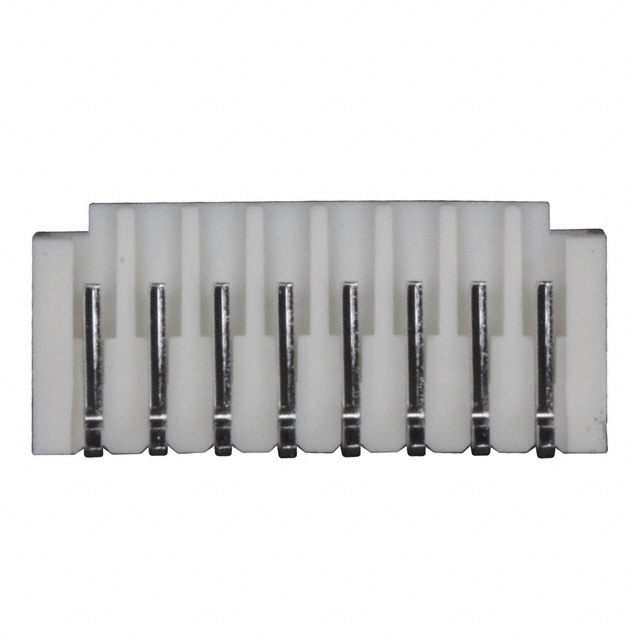

Molex 0874370833	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Glass Filled Nylon 4/6 Polyamide (PA46)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	8	Board to Cable/Wire			Tin-Lead

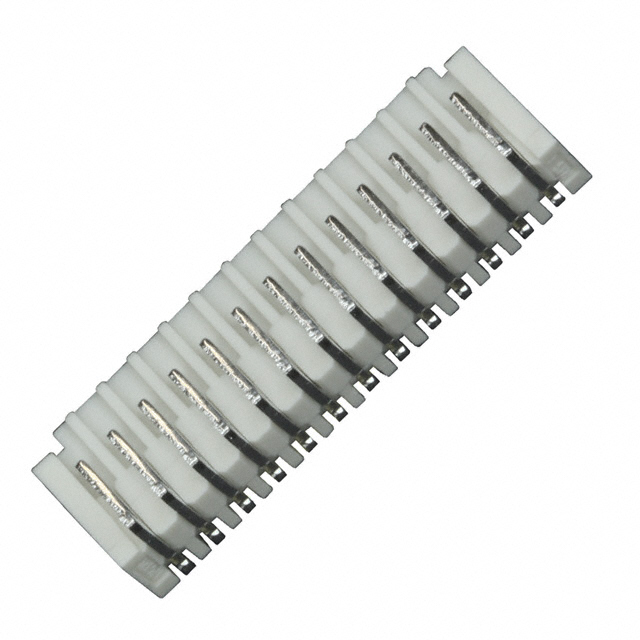

Molex 0874371333	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Glass Filled Nylon 4/6 Polyamide (PA46)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	13	Board to Cable/Wire			Tin-Lead

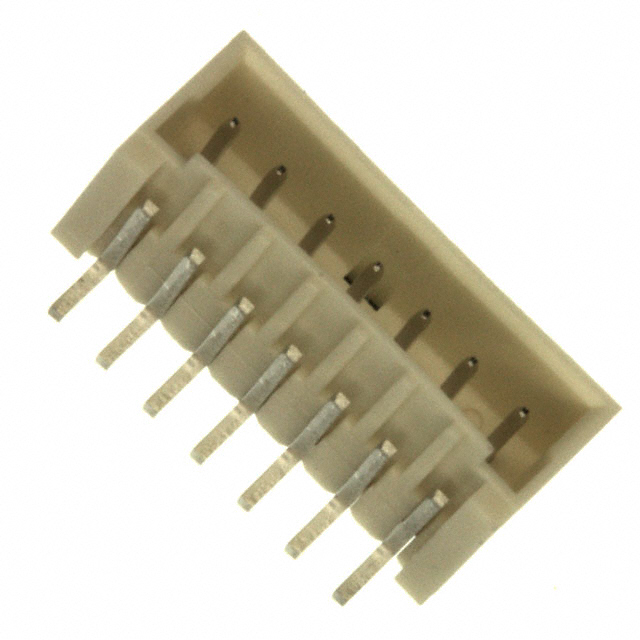

Molex 0874370743	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	7	Board to Cable/Wire	Tin
Molex 0874371573	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Glass Filled Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm	15	Board to Cable/Wire	Tin	Pick and Place

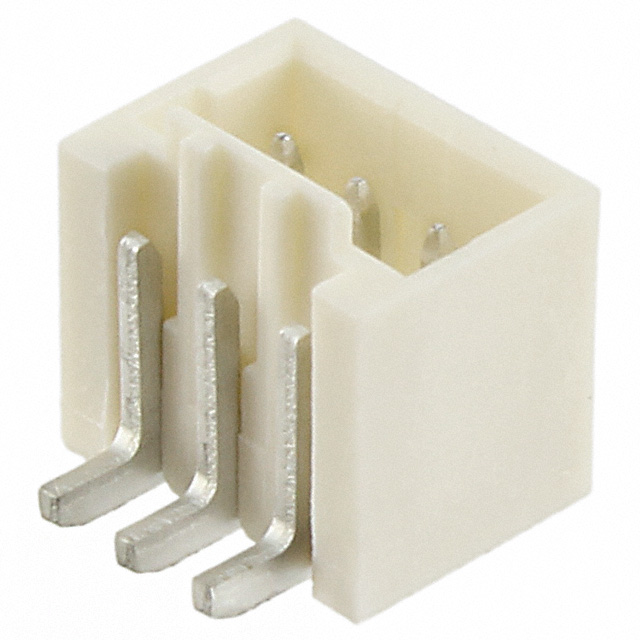

Molex 0874370342	Push-Pull	Solder	Surface Mount	Header	General Purpose Medical	Nylon Polyamide (PA)	7.4 mm	Beige	0.106 in	2.7 mm	UL94 V-0	1	All	Male Pin	Brass Alloy	2.54 çm	100 çin	Square	Shrouded - 4 Wall	0.199 in	5.05 mm		Board to Cable/Wire	Tin
