MPC83 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC MPU MPC83XX 266MHZ 620HBGA

Part	Core Processor	RAM Controllers	Additional Interfaces	Mounting Type	Speed	Voltage - I/O	Ethernet	USB	Number of Cores/Bus Width	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Co-Processors/DSP	Ethernet	Security Features	Ethernet [Max]	Ethernet [Min]	Contents	Board Type	Type	Utilized IC / Part
Freescale Semiconductor - NXP MPC8343CZQADDB	PowerPC e300	DDR DDR2	DUART I2C PCI SPI	Surface Mount	266 MHz	1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 + PHY (2)	1 Core 32 Bit	105 °C	-40 °C	620-HBGA (29x29)	620-BBGA Exposed Pad
Freescale Semiconductor - NXP MPC8347EZUAJDB	PowerPC e300	DDR	DUART I2C PCI SPI	Surface Mount	533 MHz	2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 + PHY (2)	1 Core 32 Bit	105 °C	0 °C	672-TBGA (35x35)	672-LBGA	SEC Security	2	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8321CZQADDC	PowerPC e300c2	DDR DDR2	DUART I2C PCI SPI TDM UART	Surface Mount	266 MHz	1.8 V 2.5 V 3.3 V		USB 2.0 (1)	1 Core 32 Bit	105 °C	-40 °C	516-PBGA (27x27)	516-BBGA	Communications QUICC Engine	(3)		100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC8347ZQAGD	PowerPC e300	DDR	DUART I2C PCI SPI	Surface Mount	400 MHz	2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 + PHY (2)	1 Core 32 Bit	105 °C	0 °C	620-HBGA (29x29)	620-BBGA Exposed Pad		2

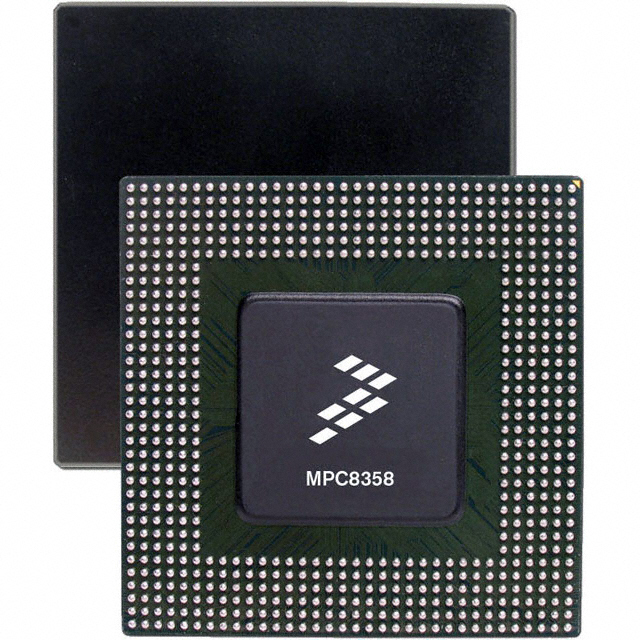

Freescale Semiconductor - NXP MPC8358ZQAGDDA	PowerPC e300	DDR DDR2	DUART HDLC I2C PCI SPI UART	Surface Mount	400 MHz	1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 1.x (1)	1 Core 32 Bit	105 °C	0 °C	668-PBGA-PGE (29x29)	668-BBGA Exposed Pad	Communications QUICC Engine

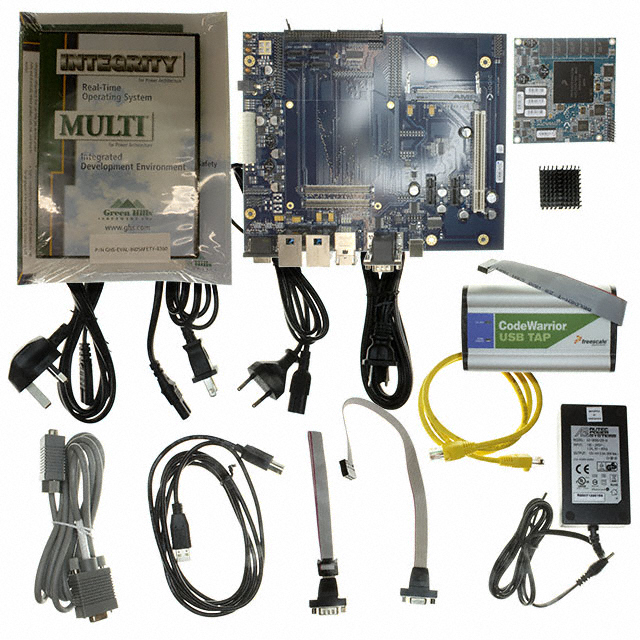

Freescale Semiconductor - NXP MPC8360EA-MDS-PB	e300			Fixed															Board(s) Cable(s) Power Supply	Evaluation Platform	MPU	MPC8360EA
Freescale Semiconductor - NXP MPC8343ECZQAGDB	PowerPC e300	DDR DDR2	DUART I2C PCI SPI	Surface Mount	400 MHz	1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 + PHY (2)	1 Core 32 Bit	105 °C	-40 °C	620-PBGA (29x29)	620-BBGA Exposed Pad	SEC Security		Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8321EVRADDC	PowerPC e300c2	DDR DDR2	DUART I2C PCI SPI TDM UART	Surface Mount	266 MHz	1.8 V 2.5 V 3.3 V		USB 2.0 (1)	1 Core 32 Bit	105 °C	0 °C	516-PBGA (27x27)	516-BBGA	Communications QUICC Engine SEC 2.2 Security	(3)	Cryptography	100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC8313CZQAFFC				Surface Mount								516-TEPBGA (27x27)	516-BBGA Exposed Pad
Freescale Semiconductor - NXP MPC8360ZUAGDGA	PowerPC e300	DDR DDR2	DUART HDLC I2C PCI SPI UART	Surface Mount	400 MHz	1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	USB 1.x (1)	1 Core 32 Bit	105 °C	0 °C	740-TBGA (37.5x37.5)	740-LBGA	Communications QUICC Engine
