G-INSEC Series

Catalog

CABLE GLAND 5-9MM M16 BRASS

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Color	Includes	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]

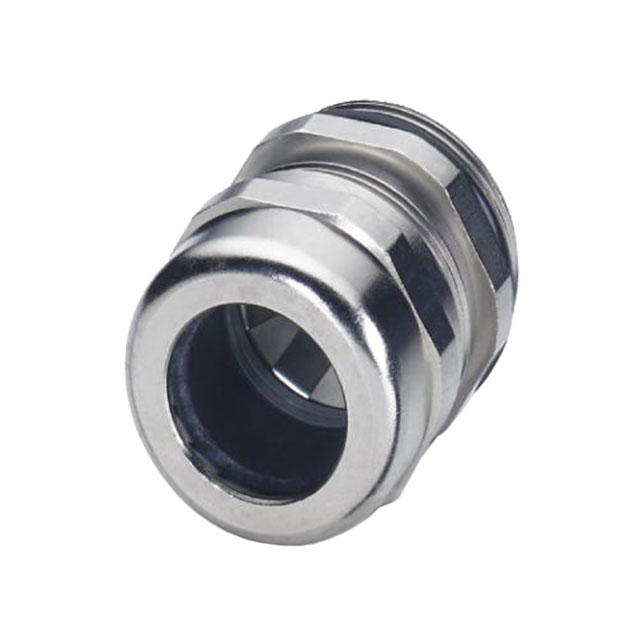

Phoenix Contact 1411188	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.197 in	5 mm	Cable Gland	0.197 in	5 mm	0.354 in	9 mm	Silver	O-Ring Seal	M16	Brass Nickel Plated

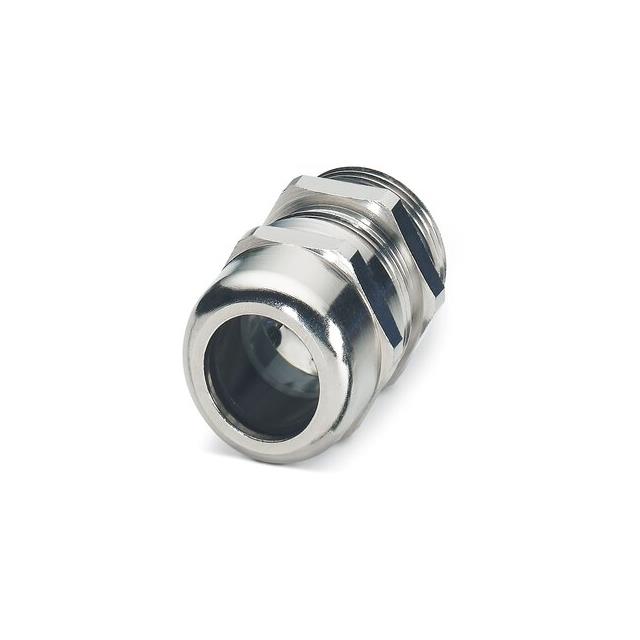

Phoenix Contact 1411203	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.472 in	12 mm	Cable Gland	1.181 in	30 mm		38 mm	Silver	O-Ring Seal	PG42	Brass Nickel Plated	1.496 in

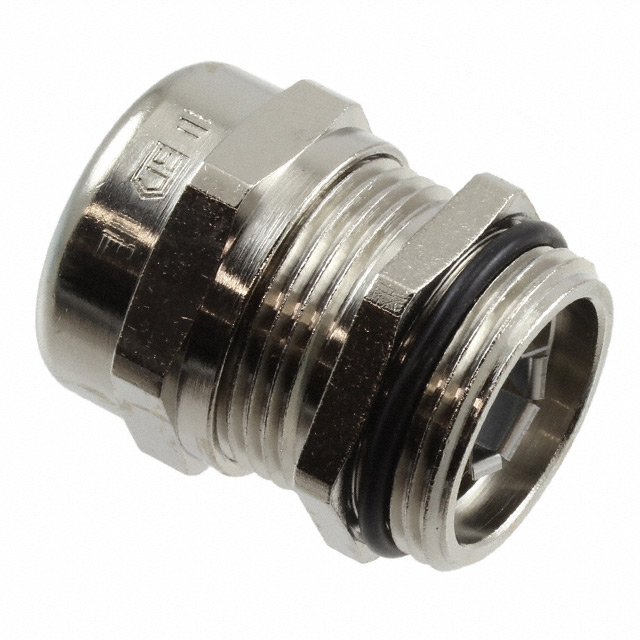

Phoenix Contact 1411190	IP68 - Dust Tight Waterproof NEMA 4X	-40 C	100 °C	0.276 "	7 mm	Cable Gland			0.63 in	16 mm	Silver	O-Ring Seal	M25	Brass Nickel Plated		11 mm	0.433 in

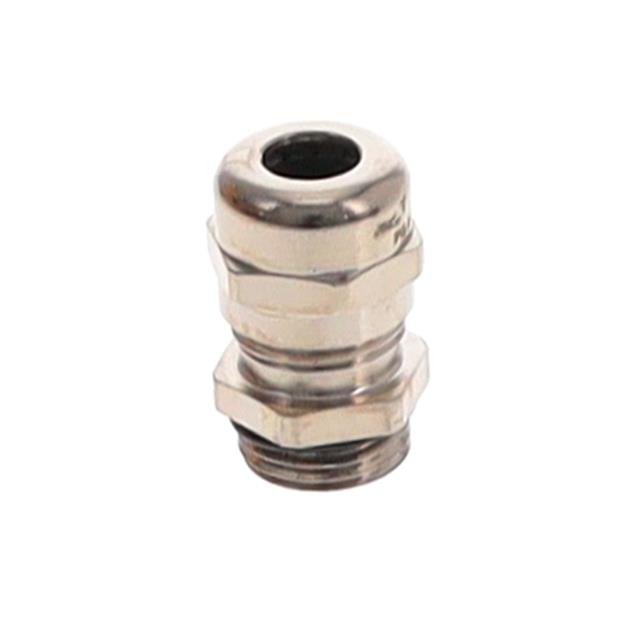

Phoenix Contact 1411196	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.236 in	6 mm	Cable Gland					Silver	O-Ring Seal	PG9	Brass Nickel Plated	0.315 in		0.157 in	8 mm	4 mm
Phoenix Contact 1411191	IP68 - Dust Tight Waterproof NEMA 4X	-40 C	100 °C	0.315 "	8 mm	Cable Gland			0.827 in	21 mm	Silver	O-Ring Seal	M32	Brass Nickel Plated			0.551 in		14 mm
Phoenix Contact 1411201	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.315 "	8 mm	Cable Gland					Silver	O-Ring Seal	PG29	Brass Nickel Plated	0.984 in		0.709 "	25 mm	18.01 mm

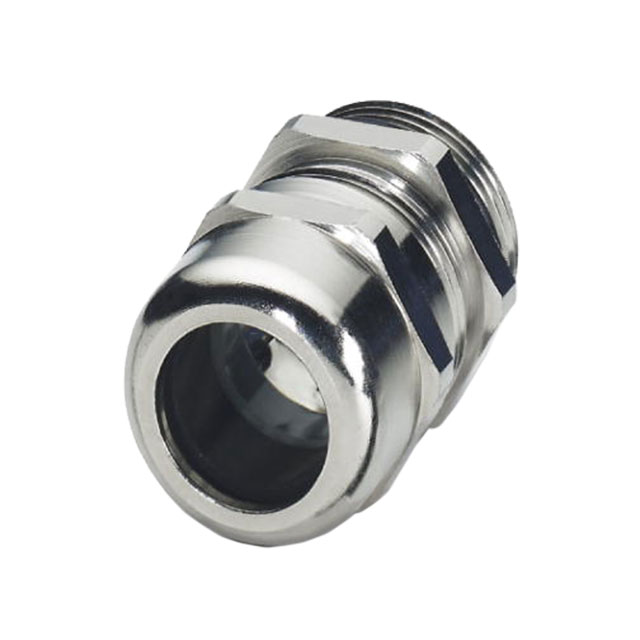

Phoenix Contact 1411200	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.283 in	7.2 mm	Cable Gland					Silver	O-Ring Seal	PG21	Brass Nickel Plated	0.709 in		0.512 in	18.01 mm	13 mm
Phoenix Contact 1411198	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.256 in	6.5 mm	Cable Gland	0.236 in	6 mm			Silver	O-Ring Seal	PG13.5	Brass Nickel Plated	0.472 in			12 mm

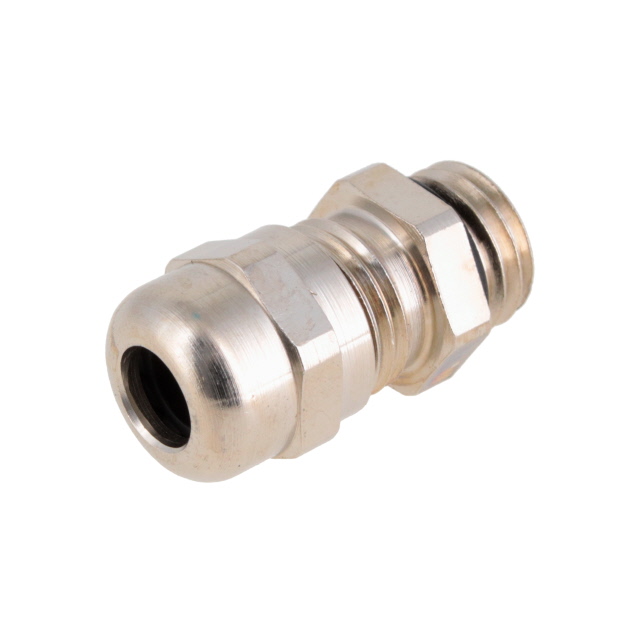

Phoenix Contact 1411187	IP68 - Dust Tight Waterproof NEMA 4X	-40 C	100 °C	0.236 in	6 mm	Cable Gland		0.118 in	0.256 in	6.5 mm	Silver	O-Ring Seal	M12	Brass Nickel Plated						3 mm

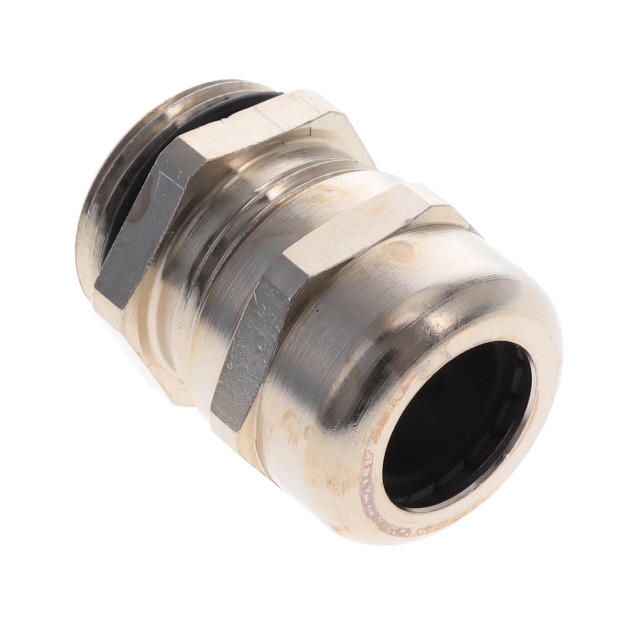

Phoenix Contact 1411199	IP68 - Dust Tight Waterproof	-40 C	100 °C	0.256 in	6.5 mm	Cable Gland				14 mm	Silver	O-Ring Seal	PG16	Brass Nickel Plated	0.551 in		0.394 "		10 mm
