02S121 Series
Manufacturer: Rosenberger
Beta
⌘K

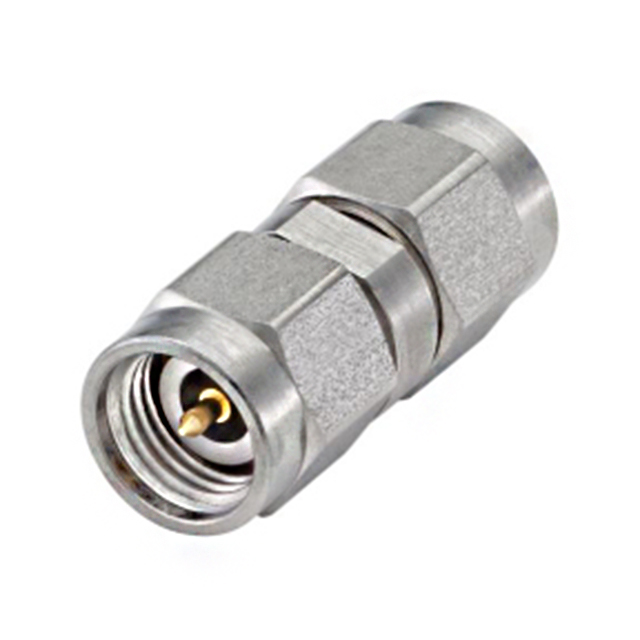

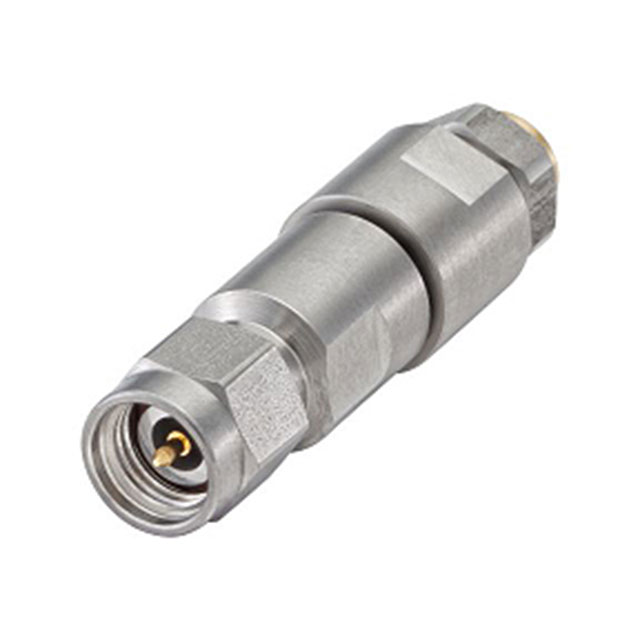

CONN RPC2.92 PLUG STR 50OHM
| Part | Voltage Rating | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Connector Style [x] | Fastening Type | Mounting Type | Impedance | Connector Type | Number of Ports | Shield Termination | Frequency - Max [Max] | Contact Termination | Center Contact Material | Housing Color | Type | For Use With/Related Products | Specifications | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 250 V | Stainless Steel | Gold | 85 °C | -40 C | 500 | Polystyrene (PS) | 2.92 mm | Threaded | Free Hanging (In-Line) | 50 Ohms | Plug Male Pin | 1 | Solder | 40 GHz | Solder | Beryllium Copper | Silver | ||||
 Rosenberger | Specialized | Network Analyzer | 2.92 Plug Plug | Calibration Adapter |
