TUHW-V88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

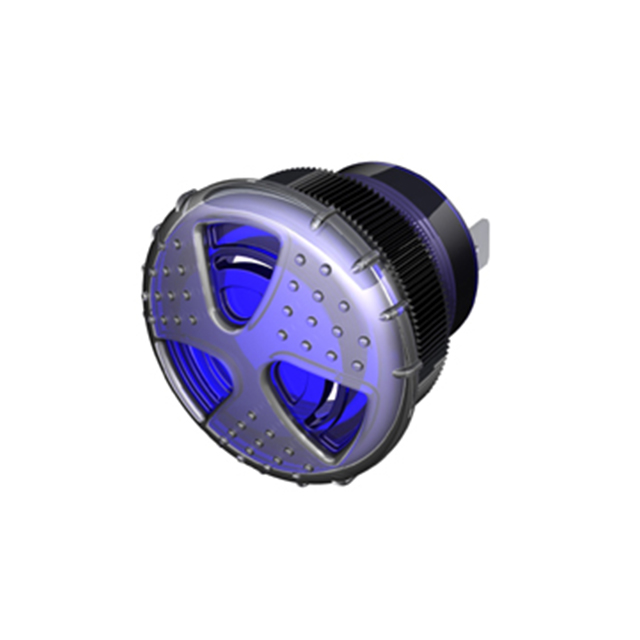

BUZZER 35.81MM PNL MNT
| Part | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Driver Circuitry | Port Location | Input Type | Approval Agency | Size / Dimension [diameter] | Size / Dimension [diameter] | Sound Pressure Level (SPL) | Mounting Type | Voltage Range [Max] | Voltage Range [Min] | Ingress Protection | Frequency | Current - Supply [Max] | Current - Supply [Min] | Termination | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Warble Fast | 1.25 " | 31.75 mm | Indicator Internally Driven | Top | DC | UL UR | 1.41 in | 35.81 mm | 103 dB | Panel Mount | 30 V | 9 V | IP68 - Dust Tight Waterproof | 3 kHz | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm |
Floyd Bell Inc | Slow Warble | 1.25 " | 31.75 mm | Indicator Internally Driven | Top | DC | UL UR | 1.41 in | 35.81 mm | 103 dB | Panel Mount | 30 V | 9 V | IP68 - Dust Tight Waterproof | 3 kHz | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm |
