8609432811 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

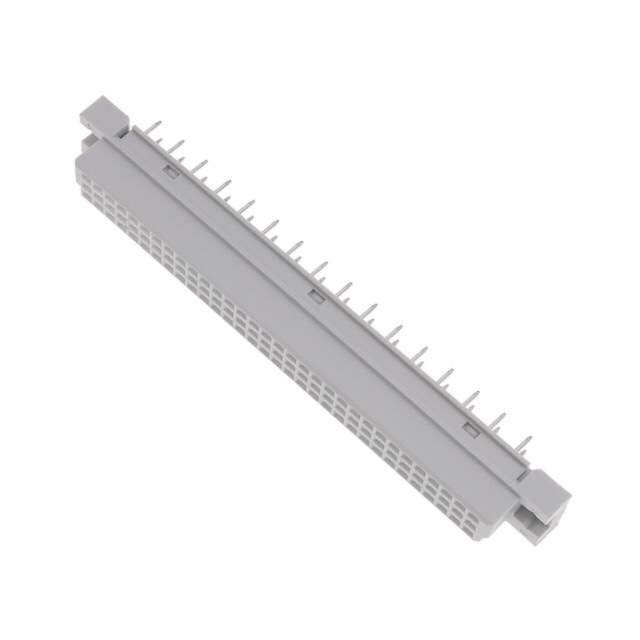

CONN DIN RCPT 96POS PCB GOLD
| Part | Connector Type | Number of Positions | Current Rating (Amps) | Material - Insulation | Termination | Style | Number of Positions Loaded | Level, Class | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Rows | Pitch [x] | Pitch [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Receptacle Female Sockets | 96 | 1.5 A | Polyester Thermoplastic | Solder | C | 32 | 3 | Gold | -55 °C | 125 °C | UL94 V-0 | 3 | 2.54 mm | 0.1 in | Through Hole |
Amphenol ICC (FCI) | Receptacle Female Sockets | 96 | 1.5 A | Polyester Thermoplastic | Solder | C | 32 | Gold | -55 °C | 125 °C | UL94 V-0 | 3 | 2.54 mm | 0.1 in | Through Hole | |
Amphenol ICC (FCI) | Receptacle Female Sockets | 96 | 1.5 A | Polyester Thermoplastic | Solder | C | 32 | Gold | -55 °C | 125 °C | UL94 V-0 | 3 | 2.54 mm | 0.1 in | Through Hole |
