CS8122 Series

Catalog

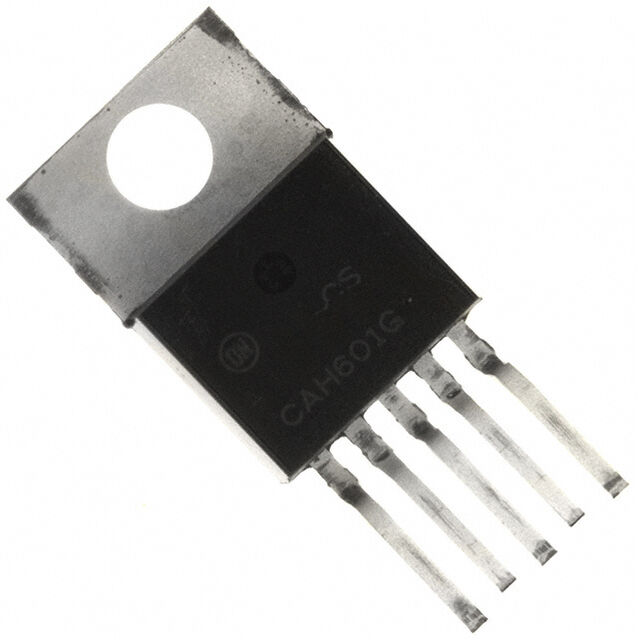

IC REG LIN 5V 750MA TO220-5

Part	Supplier Device Package	Control Features	Current - Output	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	PSRR	Output Type	Protection Features	Output Configuration	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
ON Semiconductor CS8122YTHA5G	TO-220-5 Horizontal	Reset	750 mA	100 mA	70 mA	75 dB	1.81 mOhm	Over Temperature Over Voltage Reverse Polarity Short Circuit	Positive	0.6 V	5 V	1	26 V	TO-220-5 Formed Leads	125 °C	-40 °C	Through Hole
ON Semiconductor CS8122YT5	TO-220-5													TO-220-5			Through Hole
ON Semiconductor CS8122YTVA5G	TO-220-5 Vertical	Reset	750 mA	100 mA	70 mA	75 dB	1.81 mOhm	Over Temperature Over Voltage Reverse Polarity Short Circuit	Positive	0.6 V	5 V	1	26 V	TO-220-5 Formed Leads	125 °C	-40 °C	Through Hole
ON Semiconductor CS8122YT5G	TO-220-5													TO-220-5			Through Hole
ON Semiconductor CS8122YTVA5	TO-220-5 Vertical	Reset	750 mA	100 mA	70 mA	75 dB	1.81 mOhm	Over Temperature Over Voltage Reverse Polarity Short Circuit	Positive	0.6 V	5 V	1	26 V	TO-220-5 Formed Leads	125 °C	-40 °C	Through Hole
