EM-SGL-NPT1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

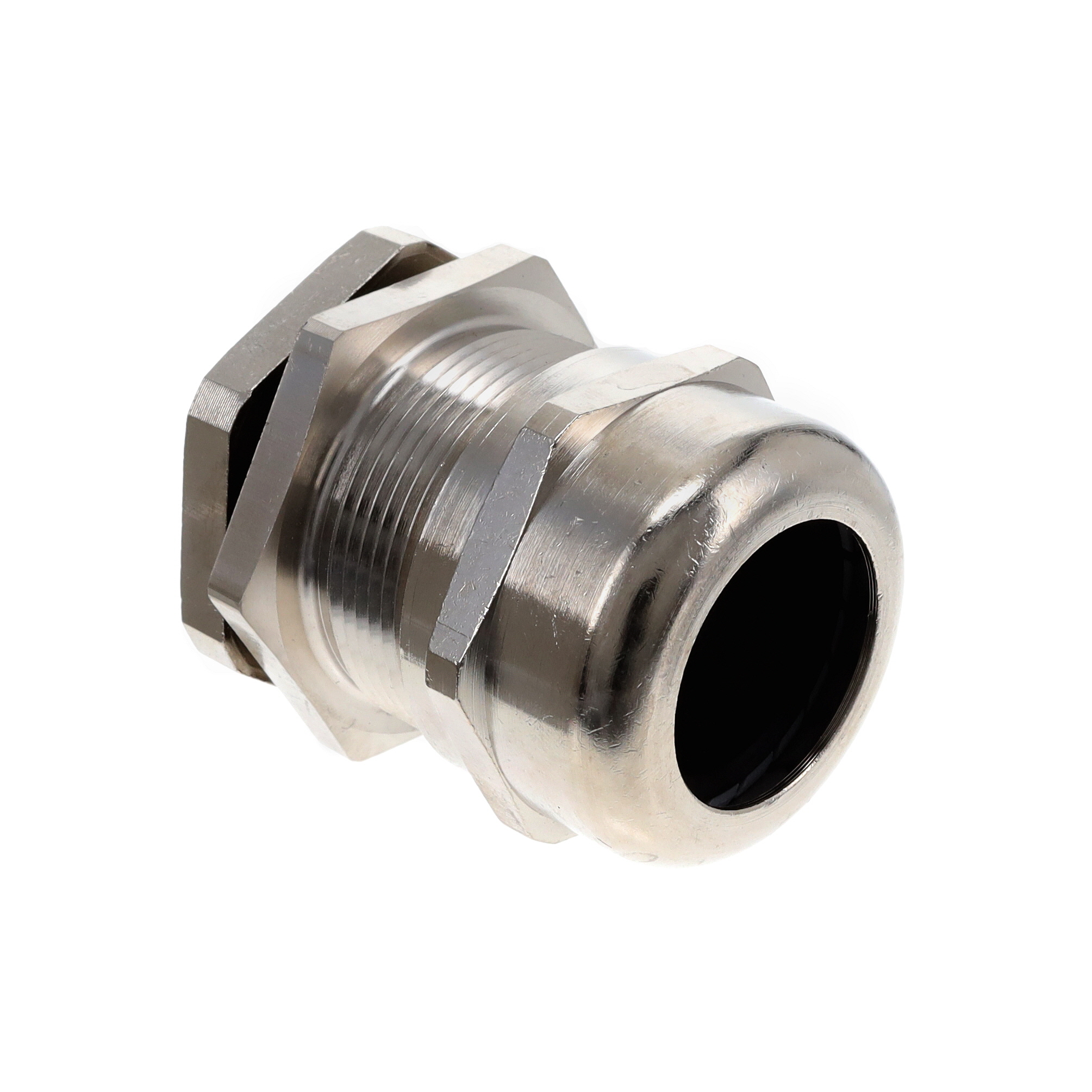

CABLE GLAND 18.01-25MM 1" NPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Includes | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Thread Length | Thread Length | Material | Thread Size | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | Silver | 0.984 in | 25 mm | Locknut Seal | 18.01 mm | 0.709 " | 0.512 " | 13 mm | Brass Nickel Plated | 1" NPT | Cable Gland |
