172890 Series
Manufacturer: Molex
Beta
⌘K

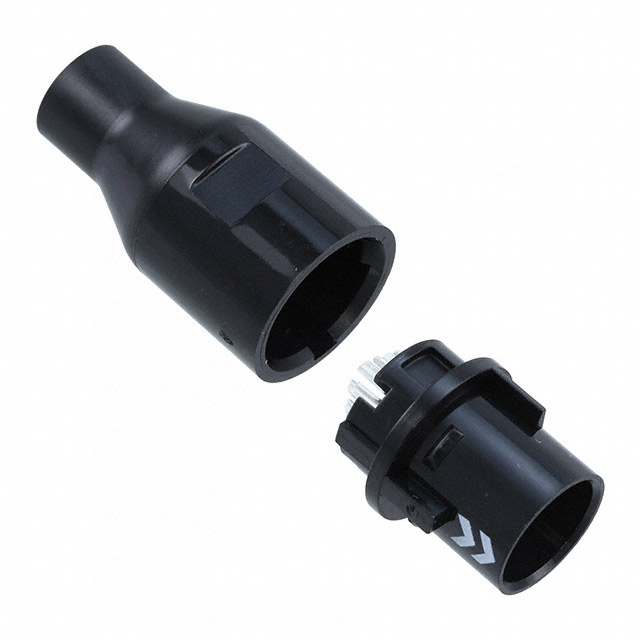

MPC MALE PLUG, DISPOSABLE, KEY AA, 17 CIRCUITS
| Part | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Material | Insert Material | Current Rating (Amps) | Orientation [custom] | Primary Material | Applications | Backshell Material, Plating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Contact Finish - Mating | Voltage Rating | Shell Material | Ingress Protection | Number of Positions | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 5 µin | 0.127 µm | Backshell Disposable Strain Relief | Copper Alloy | Polycarbonate (PC) | 1.6 A | AA | Plastic | Medical | Polycarbonate (PC) | Latch Lock Push-Pull | -40 C | 105 ░C | Plug Male Pins | Free Hanging (In-Line) | Gold | 300 VAC | Polycarbonate (PC) | IP50 - Dust Protected | ||
Molex | Black | 5 µin | 0.127 µm | Backshell Disposable Strain Relief | Copper Alloy | Polycarbonate (PC) | 1.6 A | Plastic | Medical | Polycarbonate (PC) | Latch Lock | -40 C | 105 ░C | Plug Male Pins | Free Hanging (In-Line) | Gold | 300 VAC | Polycarbonate (PC) | IP50 - Dust Protected | 7 | Keyed |
