560-003 Series

Manufacturer: EDAC Inc.

Catalog

CONN RCPT HSG 3POS 2.50MM

Part	Note	Number of Rows	Mounting Type	Contact Type	Contact Termination	Features	Connector Type	Insulation Material	Pitch	Pitch	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Applications	Pitch - Mating	Pitch - Mating	Contact Material	Current Rating (Amps)	Style	Termination	Voltage Rating	Material Flammability Rating	Ingress Protection	Contact Finish - Post	Insulation Color	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Contact Shape

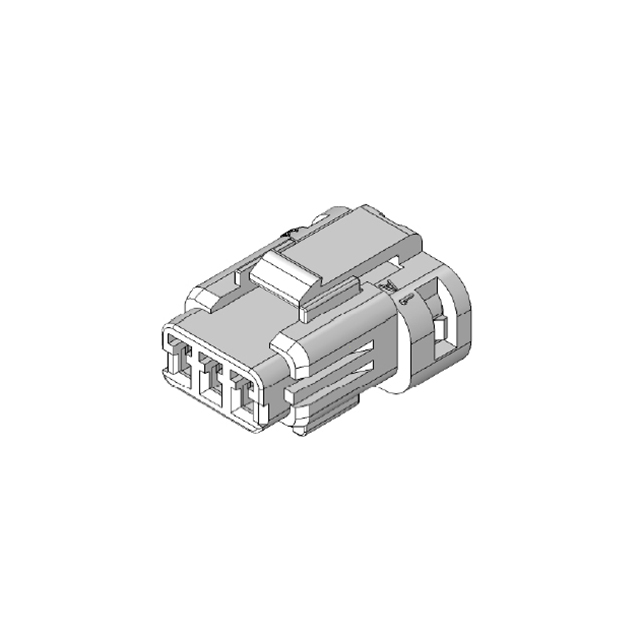

EDAC Inc. 560-003-000-210	Contacts Not Included	1	Free Hanging (In-Line)	Female Socket	Crimp	Waterproof	Receptacle	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Lock	-40 C	105 ░C	White

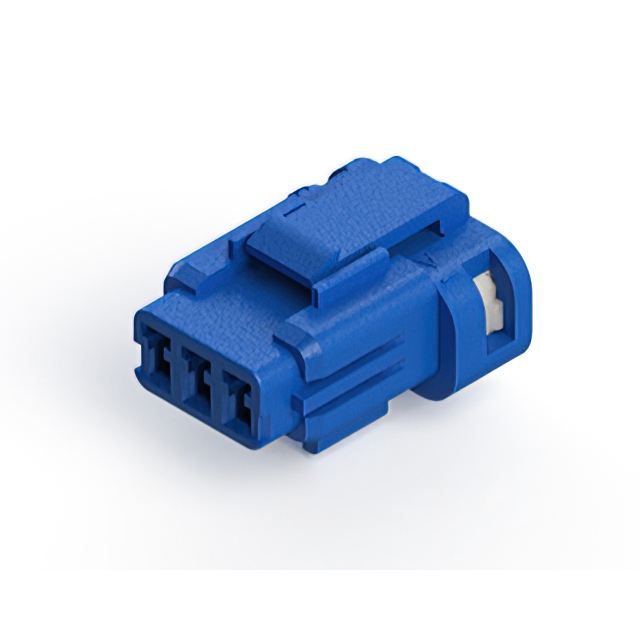

EDAC Inc. 560-003-000-411	Contacts Not Included	1	Free Hanging (In-Line)	Female Socket	Crimp	Waterproof	Receptacle	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Lock	-40 C	105 ░C	Blue

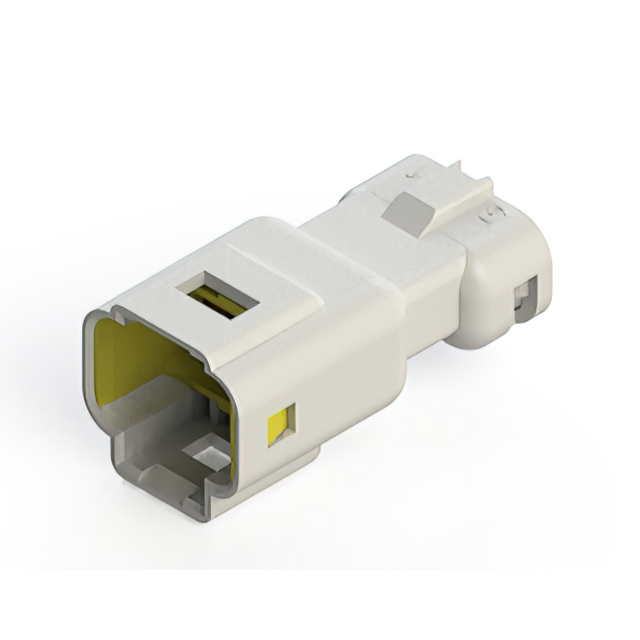

EDAC Inc. 560-003-000-111	Contacts Not Included	1	Free Hanging (In-Line)	Male Pin	Crimp	Waterproof	Plug	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Holder	-40 C	105 ░C	White

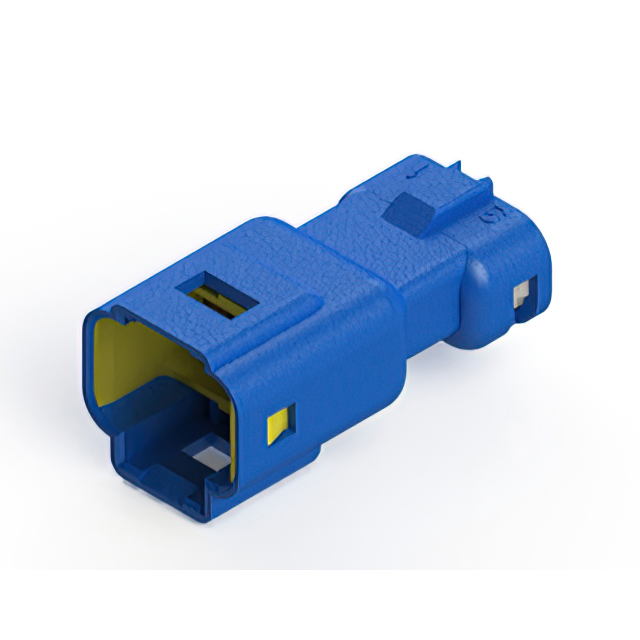

EDAC Inc. 560-003-000-310	Contacts Not Included	1	Free Hanging (In-Line)	Male Pin	Crimp	Waterproof	Plug	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Holder	-40 C	105 ░C	Blue
EDAC Inc. 560-003-000-110	Contacts Not Included	1	Free Hanging (In-Line)	Male Pin	Crimp	Waterproof	Plug	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Holder	-40 C	105 ░C	White

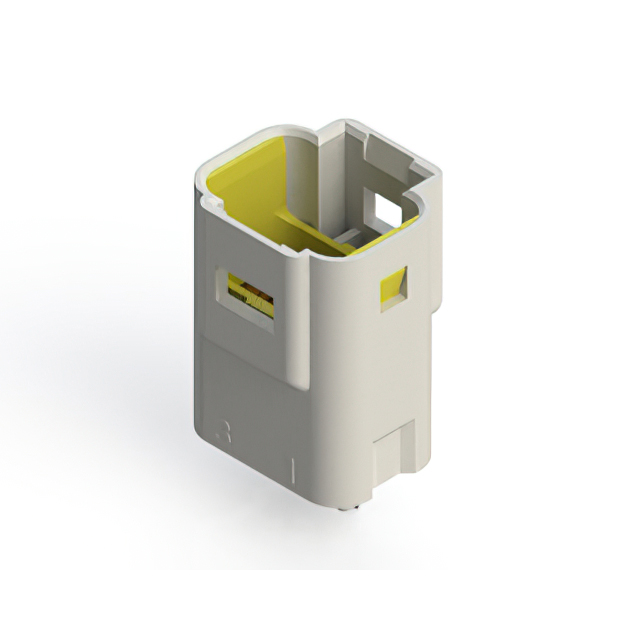

EDAC Inc. 560-003-420-101		1	Through Hole	Male Pin			Header	Polybutylene Terephthalate (PBT)			Latch Holder	-40 C	105 ░C		Automotive General Purpose	2.5 mm	0.098 in	Brass	3 A	Board to Cable/Wire	Solder	250 V	UL94 V-0	IP67	Tin	White	0.61 in	15.49 mm	Shrouded - 4 Wall	All	Circular

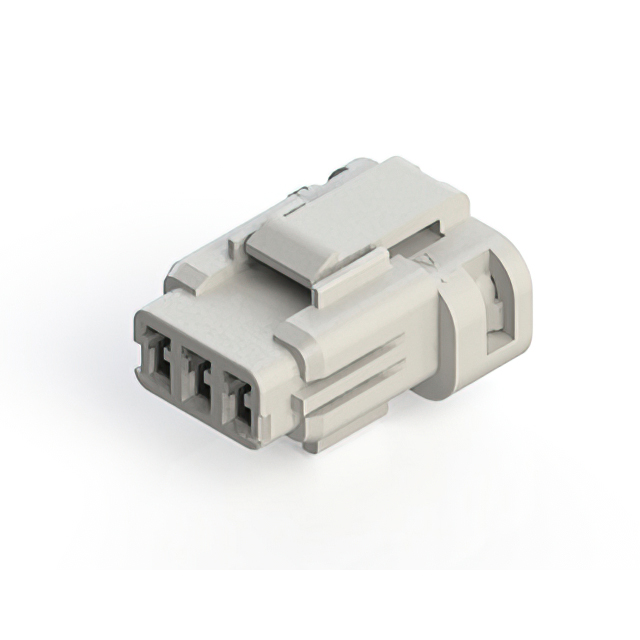

EDAC Inc. 560-003-000-211	Contacts Not Included	1	Free Hanging (In-Line)	Female Socket	Crimp	Waterproof	Receptacle	Polybutylene Terephthalate (PBT)	2.5 mm	0.098 in	Latch Lock	-40 C	105 ░C	White
