FN9222 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT RCPT IEC320-C20 PANEL QC

Part	Approval Agency	Ingress Protection	Features	Current Rating - Filter	Connector Style	Material Flammability Rating	Filter Type	Termination	Termination	Termination	Connector Type	Mounting Type
TE Connectivity AMP Connectors FN9222B-20-06	CQC CSA ENEC UL	IP40	Bleed Resistor Front or Rear Side Mount	10 A	IEC 320-C20	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount
TE Connectivity AMP Connectors FN9222EB-12-06	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	12 A	IEC 320-C14	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount
TE Connectivity AMP Connectors FN9222B-20-06	CQC CSA ENEC UL	IP40	Bleed Resistor Front or Rear Side Mount	10 A	IEC 320-C20	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount
TE Connectivity AMP Connectors FN9222EB-12-06	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	12 A	IEC 320-C14	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount

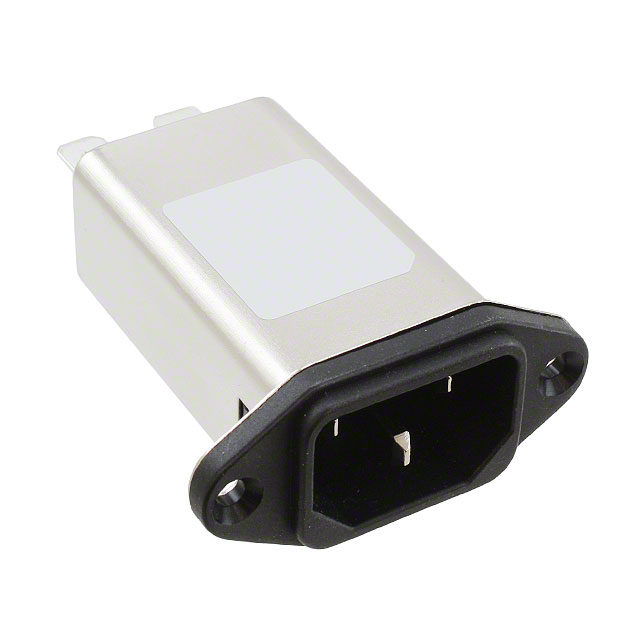

TE Connectivity AMP Connectors FN9222ER-10-06	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	10 A	IEC 320-C14	UL94 V-2	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount
TE Connectivity AMP Connectors FN9222ER-10-06	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	10 A	IEC 320-C14	UL94 V-2	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Flange Panel Mount
