364-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

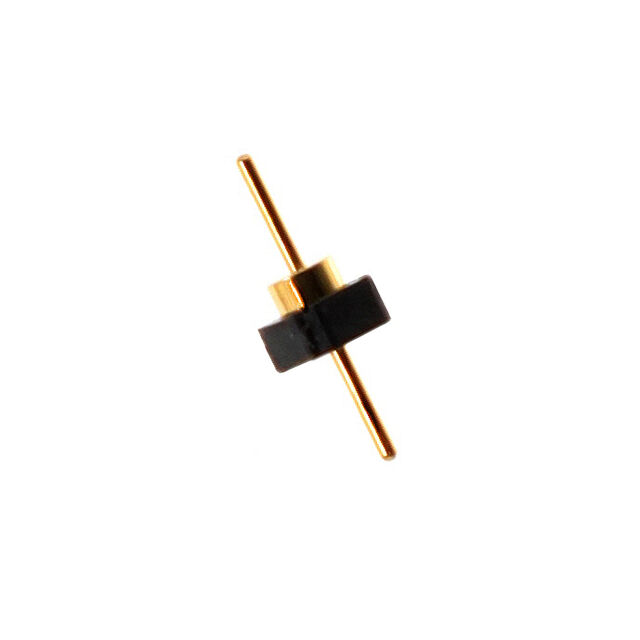

CONN HEADER VERT 15POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Connector Type	Insulation Material	Contact Material	Insulation Color	Contact Finish - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height [z]	Insulation Height [z]	Shrouding	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded
Mill-Max Manufacturing Corp. 364-10-115-00-580000	10 Áin	0.25 çm	15	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-120-00-580000	10 Áin	0.25 çm	20	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-129-00-580000	10 Áin	0.25 çm	29	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-110-00-580000	10 Áin	0.25 çm	10	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-125-00-580000	10 Áin	0.25 çm	25	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-119-00-580000	10 Áin	0.25 çm	19	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-104-00-580000	10 Áin	0.25 çm	4	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-116-00-580000	10 Áin	0.25 çm	16	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-128-00-580000	10 Áin	0.25 çm	28	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
Mill-Max Manufacturing Corp. 364-10-114-00-580000	10 Áin	0.25 çm	14	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Brass Alloy	Black	Gold	Push-Pull	0.1 "	2.54 mm	Male Pin	3.05 mm	0.12 in	1	2.15 mm	0.085 in	Unshrouded	Circular	0.25 µm	10 µin	Solder	Through Hole	0.33 in	8.38 mm	Gold	0.125 in	3.18 mm	All
