ECQ-E2106 Series

Catalog

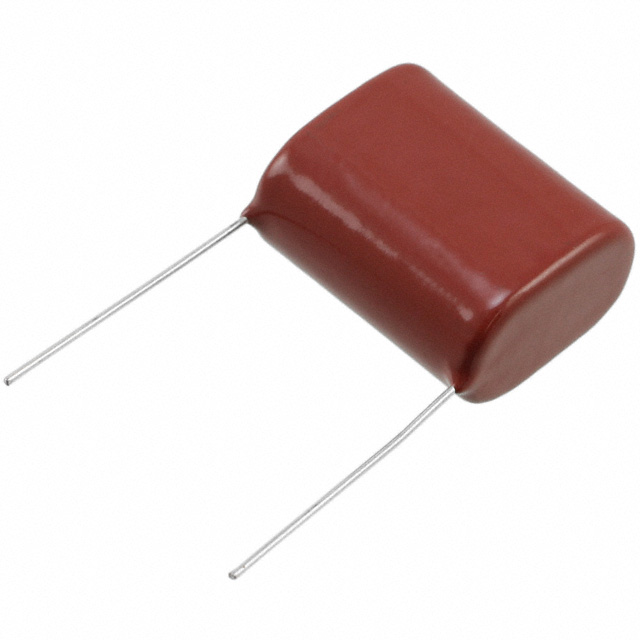

CAP FILM 10UF 5% 250VDC RADIAL

Part	Tolerance	Package / Case	Dielectric Material	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2106JF	5 %	Radial	Polyester Metallized	250 V	1.075 in	27.3 mm	0.626 "	31 mm	1.22 in	15.9 mm	General Purpose	27.5 mm	1.083 in	10 µF	Through Hole	PC Pins	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2106KFW	10 %	Radial	Polyester Metallized	250 V	1.213 in		0.626 "	31 mm	1.22 in	15.9 mm	General Purpose	22.5 mm	0.886 in	10 µF	Through Hole	PC Pins	-40 C	105 ░C	30.8 mm
Panasonic Electronic Components ECQ-E2106JFB	5 %	Radial	Polyester Metallized	250 V	1.213 in		0.626 "	31 mm	1.22 in	15.9 mm	General Purpose	22.5 mm	0.886 in	10 µF	Through Hole	PC Pins	-40 C	105 ░C	30.8 mm
Panasonic Electronic Components ECQ-E2106KF	10 %	Radial	Polyester Metallized	250 V			0.626 "	31 mm	1.22 in	15.9 mm	General Purpose	27.5 mm	1.083 in	10 µF	Through Hole	PC Pins	-40 C	105 ░C		26.8 mm	1.055 "
