NX3L2T66 Series

Catalog

IC SW SPST-NOX2 750MOHM 8XSON

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Switch Circuit	Charge Injection	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Mounting Type	Switch Time (Ton, Toff) (Max) [Max] [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	On-State Resistance (Max) [Max]	Number of Circuits	Current - Leakage (IS(off)) (Max)

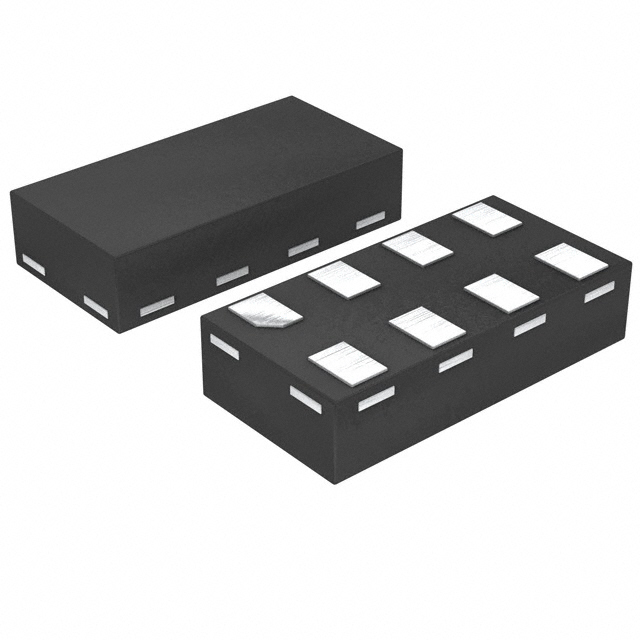

Freescale Semiconductor - NXP NX3L2T66GT,115	-40 °C	125 °C	8-XSON SOT833-1 (1.95x1)	8-XFDFN	20 mOhm	1:1	SPST - NO	6 pC	1.4 V	4.3 V	60 MHz	35 pF	35 pF	Surface Mount	20 ns	28 ns	750 mOhm	2	10 nA
