BHR-30 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Shrouding	Features	Number of Positions	Termination	Insulation Material	Number of Rows [custom]	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Current Rating (Amps)	Fastening Type	Style	Contact Shape	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Length - Post	Contact Length - Post

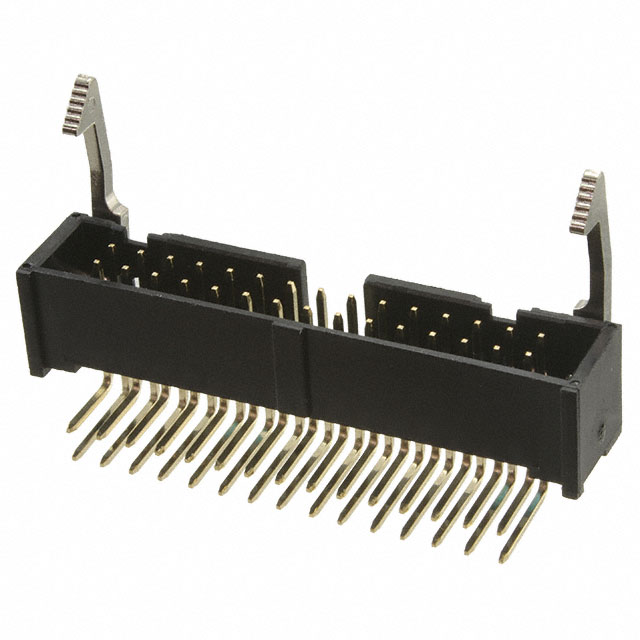

Adam Tech BHR-30-HUA-ML	Flash	Brass	0.354 in	9 mm	0.1 "	2.54 mm	Gold	Gold	Black	Shrouded - 4 Wall	Keying Slot	30	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	All	Right Angle Through Hole	Flash	3 A	Latch Lock/Eject Hooks Long	Board to Board Cable	Square	Male Pin	0.1 in	2.54 mm	UL94 V-0	-40 C	105 ░C	350 VAC	0.126 "	3.2 mm	Header

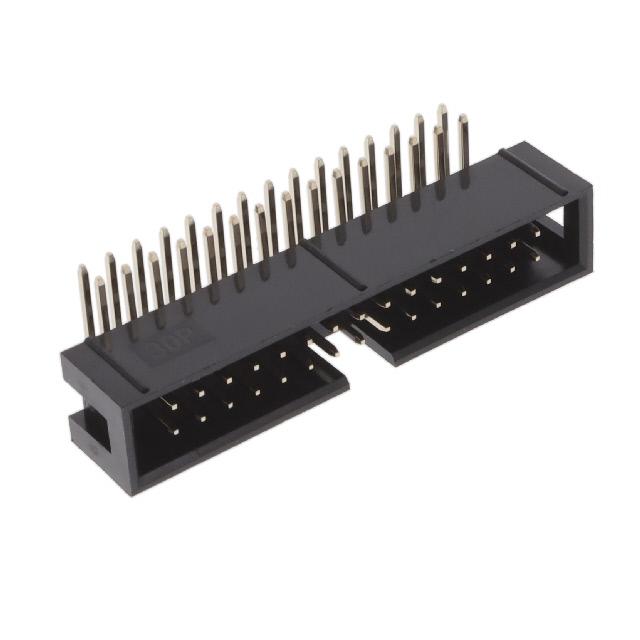

Adam Tech BHR-30-HUA	Flash	Brass	0.356 "	9.05 mm	0.1 "	2.54 mm	Gold	Gold	Black	Shrouded - 4 Wall	Keying Slot	30	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	All	Right Angle Through Hole	Flash		Push-Pull	Board to Board Cable	Square	Male Pin	0.1 in	2.54 mm	UL94 V-0	-40 C	105 ░C	250 VAC	0.134 "		Header	3.4 mm

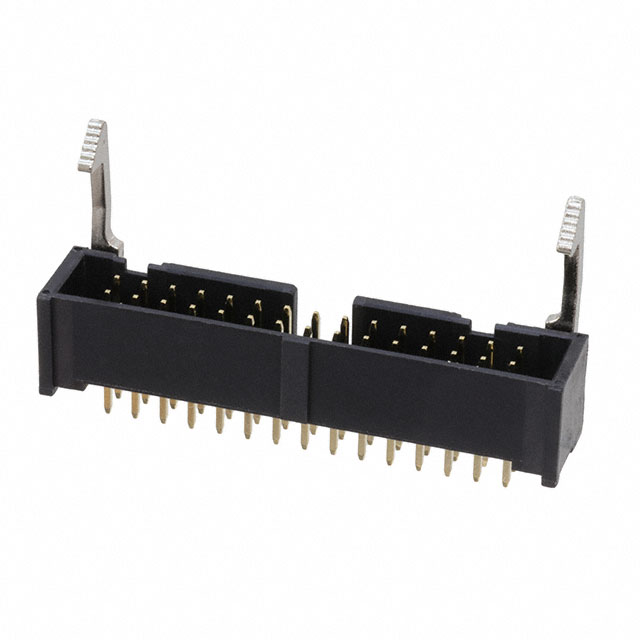

Adam Tech BHR-30-VUA-ML	Flash	Brass	0.358 "	9.1 mm	0.1 "	2.54 mm	Gold	Gold	Black	Shrouded - 4 Wall	Keying Slot	30	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	All	Through Hole	Flash	3 A	Push-Pull	Board to Board Cable	Square	Male Pin	0.1 in	2.54 mm	UL94 V-0	-40 C	105 ░C	250 VAC			Header	3.3 mm	0.13 "
