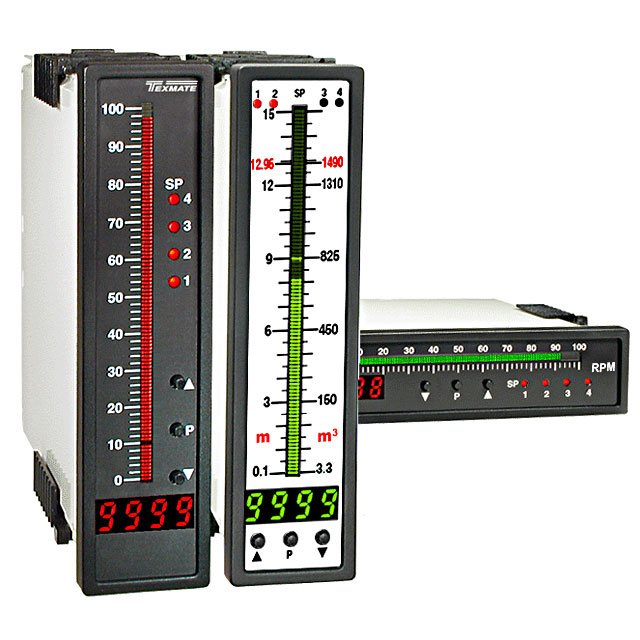

FL-BDPSF Series
Manufacturer: Texmate
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
2V, 20V, 200VDC BARGRAPH CONTROL
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Relay (Count) | Output Type | Display Characters - Height | Panel Cutout Shape | Panel Cutout Width | Panel Cutout Length | Number of Characters Per Row | Measuring Type | Termination Style | Display Type | Mounting Type | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) | Type | Measuring Voltage Range (Minimum) | Measuring Voltage Range (Maximum) | Measuring Range (Current) Minimum | Measuring Range (Current) Maximum | Measuring Range (Voltage) Maximum | Measuring Range (Voltage) Minimum | Measuring Range (Min) | Measuring Range (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Process | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Process Meter | 2 V | 200 V | ||||||
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Current | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Ammeter | 0.02 VDC | 0.2 VDC | ||||||
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Process | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Process Meter | 0.004 A | 0.02 A | 10 V | 0 V | ||||
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Current | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Ammeter | 0 A | 5 A | ||||||
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Voltage | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Voltmeter | 200 VAC | 600 VAC | ||||||
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | 0.31 in | Rectangular | 36.07 mm | 144.53 mm | 4 characters | Process | Screw Terminal | LED - Red Bar Graph LED - Red Characters | Panel Mount | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Process Meter | 0.004 mA | 0.02 mA |
