225555 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN TNC PLUG STR 50 OHM CRIMP
| Part | Contact Termination | Connector Style | Shield Termination | Body Material | Connector Type | Includes | Dielectric Material | Body Finish | Cable Group | Housing Color | Voltage Rating | Center Contact Plating | Impedance | Mounting Type | Center Contact Material | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

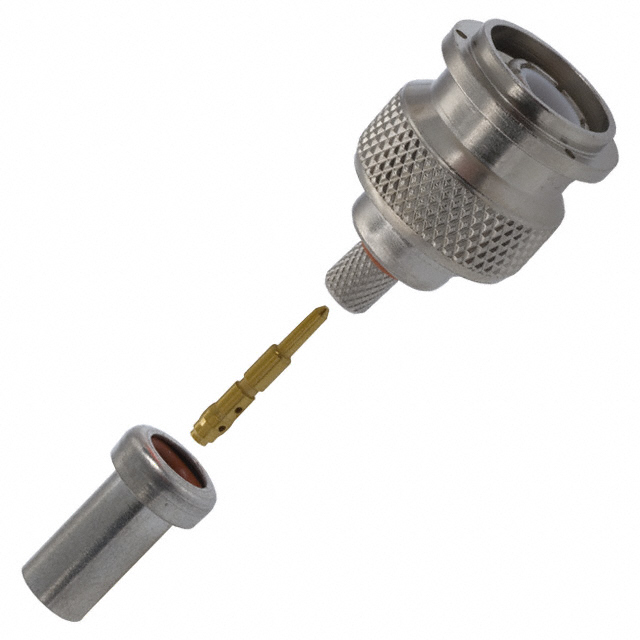

 TE Connectivity Raychem Cable Protection | Crimp | TNC | Crimp | Brass | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | Nickel | 58C RG-58A | Silver | 500 V | Gold | 50 Ohms | Free Hanging (In-Line) | Brass | 1 | -65 ░C | 165 °C | 500 | 11 GHz |

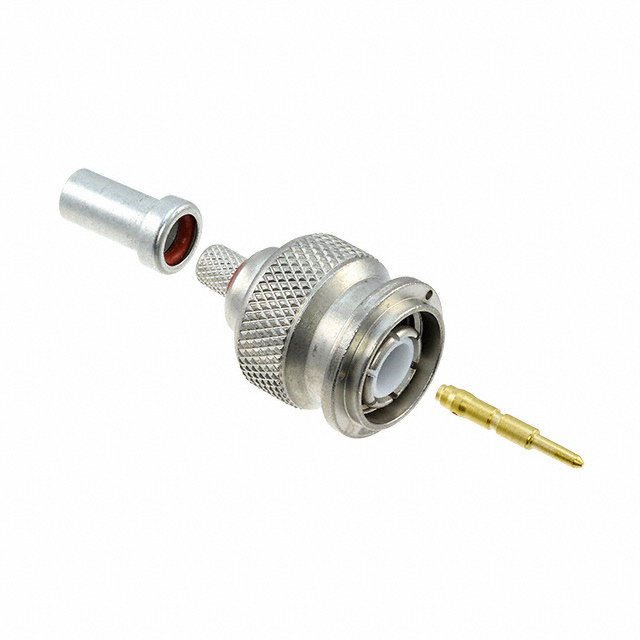

 TE Connectivity Raychem Cable Protection | Crimp | TNC | Crimp | Brass | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | Nickel | Silver | 500 V | Gold | 50 Ohms | Free Hanging (In-Line) | Brass | 1 | -65 ░C | 165 °C | 500 | 11 GHz |
