3SE5413 Series
Manufacturer: Siemens
Beta
⌘K
SWITCH LIMIT DPST 6A 125V
| Part | Mechanical Life | Termination Style | Ingress Protection | Current Rating (Amps) | Operating Force | Mounting Type | Switch Function | Actuator Type | Voltage Rating - AC | Circuit | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

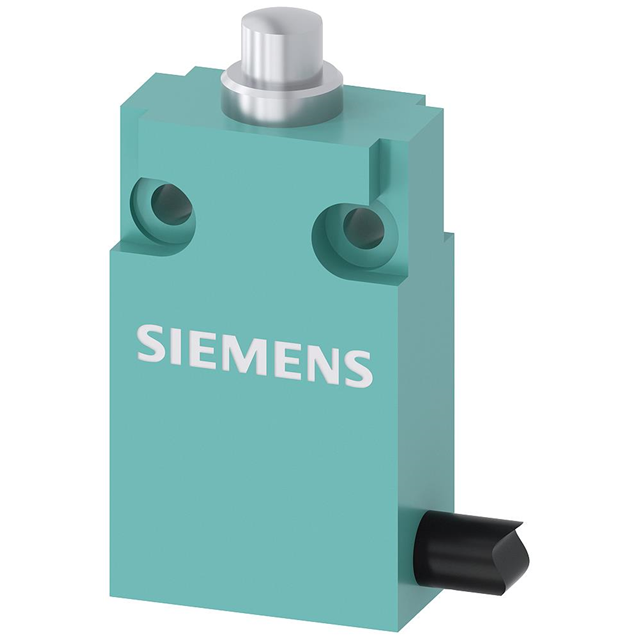

 Siemens | 10000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | 2039 gf | Chassis Mount | Off-Mom On-Mom | Round (Pin Plunger) | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |

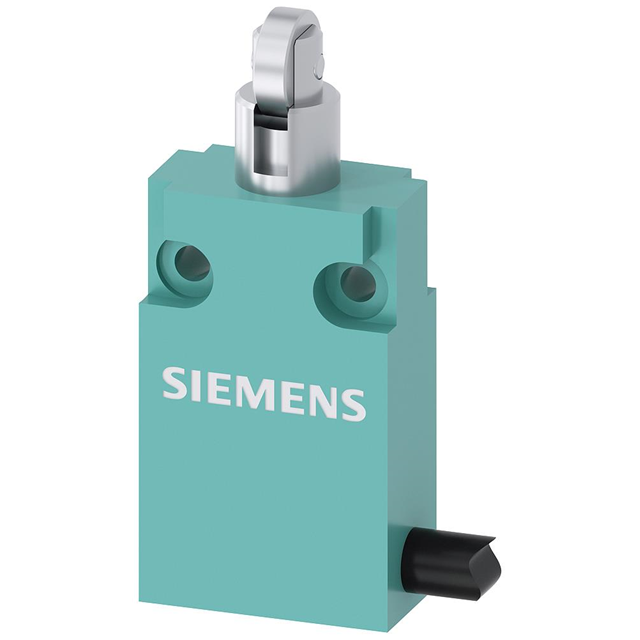

 Siemens | 5000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | 1530 gf | Chassis Mount | Off-Mom On-Mom | Roller Plunger | 125 V | DPST-NO/NC | 100000 Cycles | 125 VDC | ||

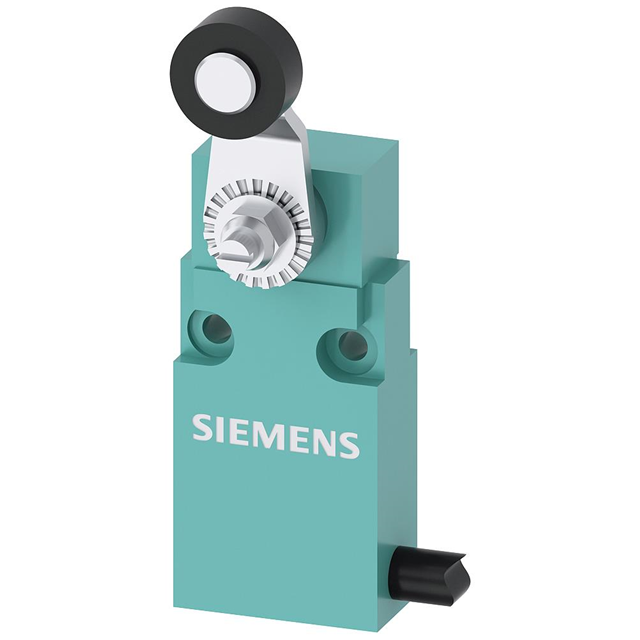

 Siemens | 5000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | Chassis Mount | Off-Mom On-Mom | Roller Side Rotary | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC | |
 Siemens | 5000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | 1530 gf | Chassis Mount | Off-Mom On-Mom | Roller Plunger | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |

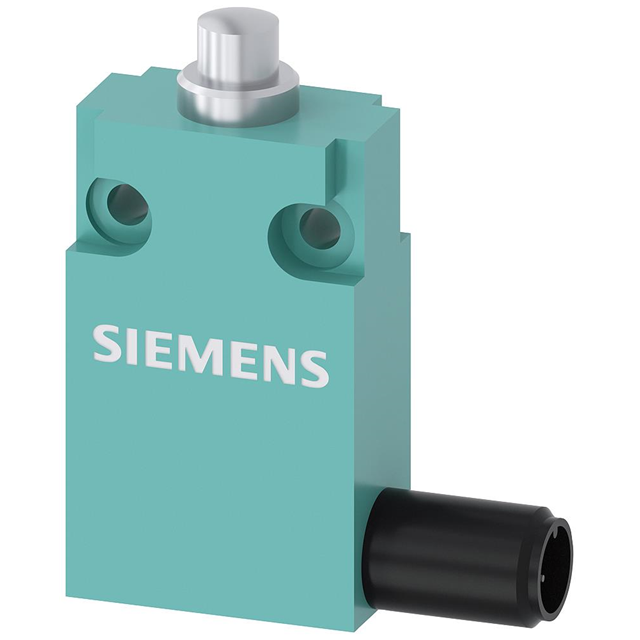

 Siemens | 10000000 Cycles | Connector | IP67 - Dust Tight Waterproof | 6 A 550 mA | 2039 gf | Chassis Mount | Off-Mom On-Mom | Round (Pin Plunger) | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |
 Siemens | 10000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | 2039 gf | Chassis Mount | Off-Mom On-Mom | Round (Pin Plunger) | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |
 Siemens | 5000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 6 A 550 mA | Chassis Mount | Off-Mom On-Mom | Roller Side Rotary | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC | |

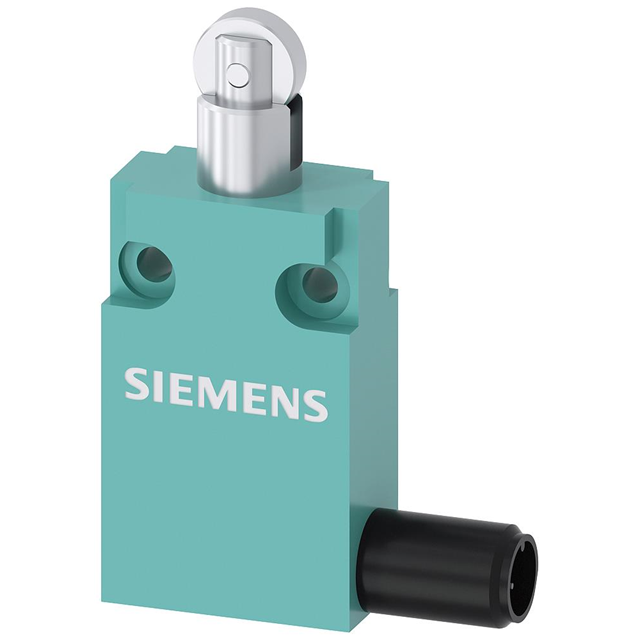

 Siemens | 5000000 Cycles | Connector | IP67 - Dust Tight Waterproof | 6 A 550 mA | 1530 gf | Chassis Mount | Off-Mom On-Mom | Roller Plunger | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |

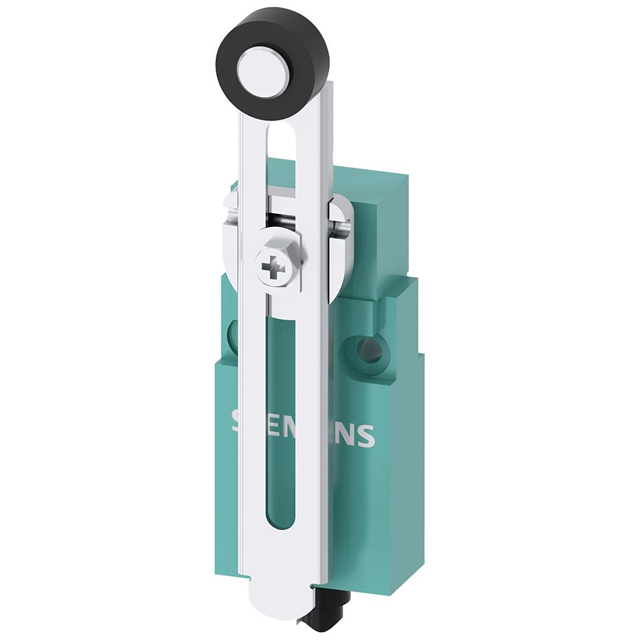

 Siemens | 5000000 Cycles | Cable Leads | IP67 - Dust Tight Waterproof | 3 A 270 mA | Chassis Mount | Off-Mom On-Mom | Side Rotary Adjustable Roller | 125 V | DPST-NO/NC | 500000 Cycles | 80 °C | -25 °C | 125 VDC | |

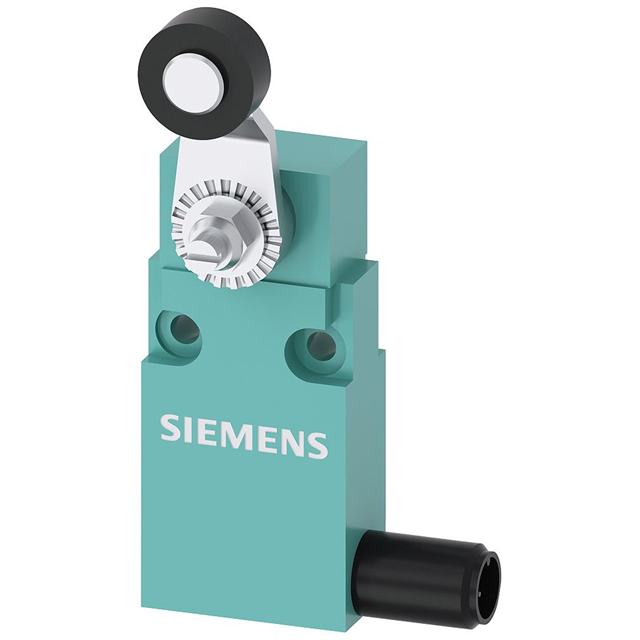

 Siemens | 5000000 Cycles | Connector | IP67 - Dust Tight Waterproof | 6 A 550 mA | Chassis Mount | Off-Mom On-Mom | Roller Side Rotary | 125 V | DPST-NO/NC | 100000 Cycles | 85 °C | -25 °C | 125 VDC |
