5178C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

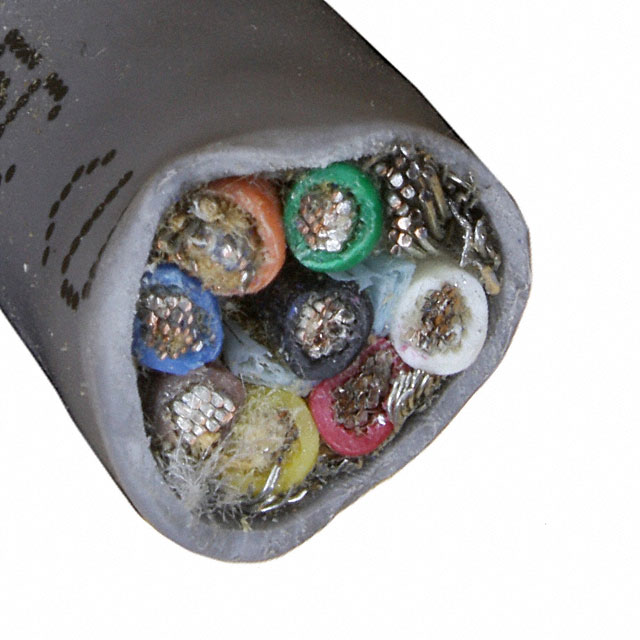

CABLE 8COND 16AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Features | Usage | Shield Type | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 16 AWG | Multi-Conductor | 0.813 mm | 0.032 in | 152.4 m | 500 ft | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 300 VDC | Copper Tinned | 10.16 mm | 0.4 in | Slate | Biological Compatibility Drain Wire Rip Cord | Communication Control | Braid Foil | 8 |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 16 AWG | Multi-Conductor | 0.813 mm | 0.032 in | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 300 VDC | Copper Tinned | 10.16 mm | 0.4 in | Slate | Biological Compatibility Drain Wire Rip Cord | Communication Control | Braid Foil | 8 |
