ME90A2403 Series

Catalog

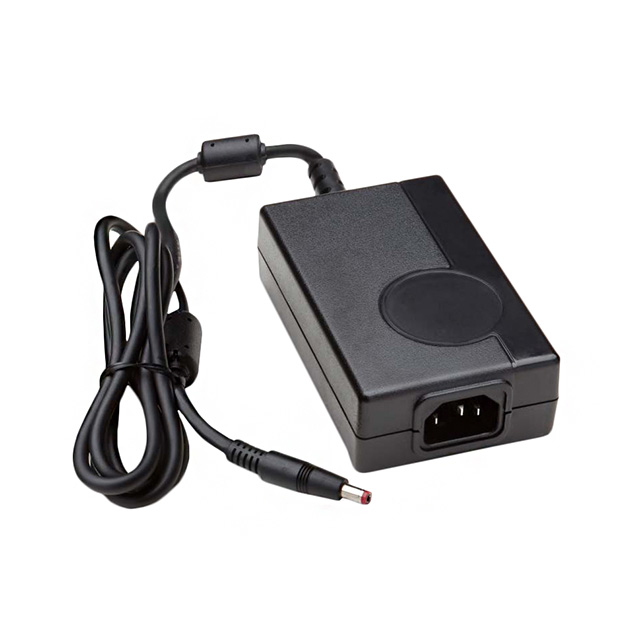

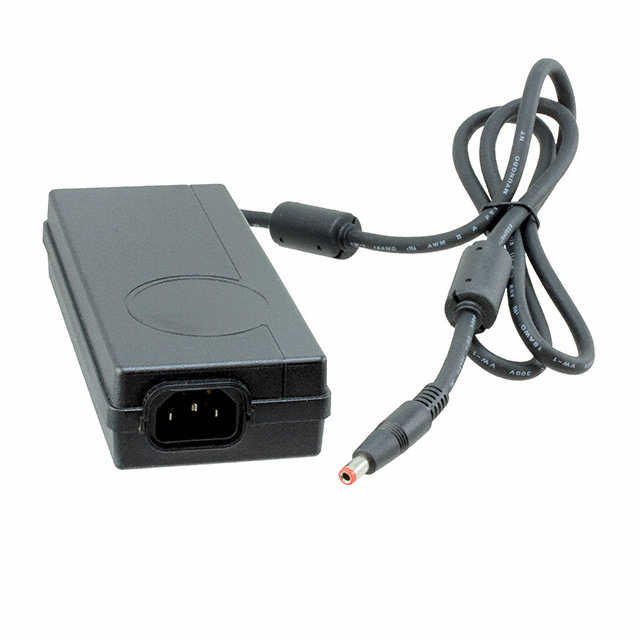

AC/DC DESKTOP ADAPTER 24V 90W

Part	No Load Power Consumption	Region Utilized	Applications	Power (Watts)	Input Connector	Voltage - Output	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Approval Agency	Polarization	Form	Voltage - Input [Min]	Voltage - Input [Max]
SL POWER / Advanced Energy ME90A2403F01	210 mW	International	Medical	90 W	IEC 320-C14	24 V	Cord (Sold Separately)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.15 m	45.3 in	3.75 A	65.5 mm	5.9 "	150.5 mm	34 mm	1.34 "	2.58 in	-20 ░C	50 °C	Level VI	CE	Positive Center	Desktop (Class I)	100 VAC	240 VAC
SL POWER / Advanced Energy ME90A2403Q01	210 mW	International	Medical	90 W	IEC 320-C18	24 V	Cord (Sold Separately)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	3.75 A	65.5 mm	5.91 in	150 mm	34 mm	1.34 "	2.58 in	-20 ░C	50 °C	Level VI	CE	Positive Center	Desktop (Class II)	90 VAC	264 VAC
SL POWER / Advanced Energy ME90A2403N01	210 mW	International	Medical	90 W	IEC 320-C8	24 V	Cord (Sold Separately)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	3.75 A	65.5 mm	5.91 in	150 mm	34 mm	1.34 "	2.58 in	-20 ░C	50 °C	Level VI	CE	Positive Center	Desktop (Class II)	90 VAC	264 VAC
