H2105 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 1.41 MM, TIN, 9.53 MM, 5.05 MM
| Part | Terminal Style | Length - Overall [x] | Length - Overall [x] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Insulation | Length - Above Flange | Length - Above Flange [x] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter | Contact Finish | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

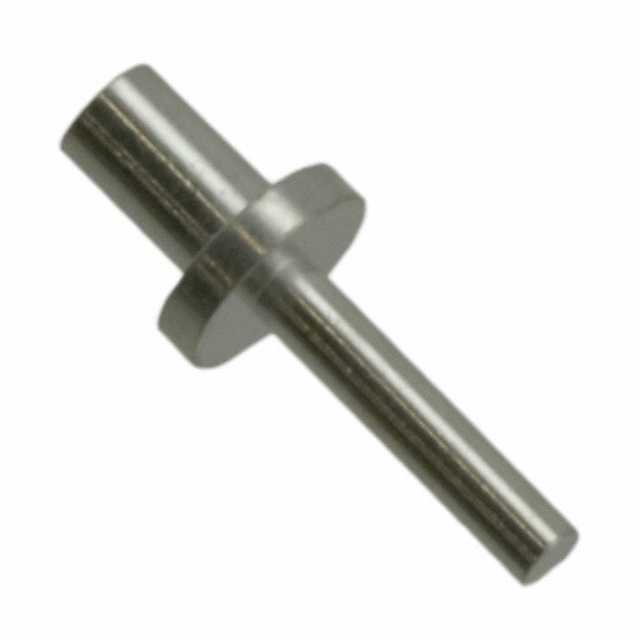

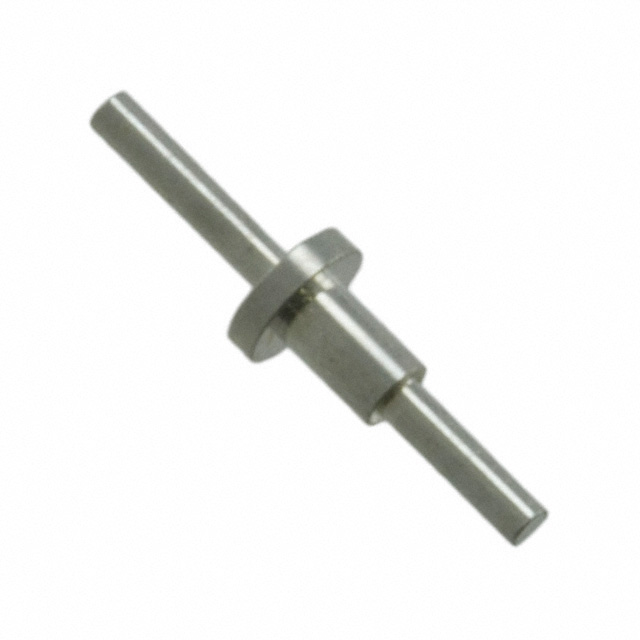

 Harwin Inc. | Double End | 9.53 mm | 0.375 in | Brass | 0.199 " | 5.05 mm | 0.063 in | 1.6 mm | PC Pin | 0.032 " | 0.81 mm | Swage | Non-Insulated | 3.96 mm | 0.156 in | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | Tin | Through Hole | 0.094 " | 2.39 mm | ||
 Harwin Inc. | Single End | 6.58 mm | 0.259 " | Brass | 0.083 " | 2.11 mm | 0.063 in | 1.6 mm | PC Pin | 0.032 " | 0.81 mm | Swage | Non-Insulated | 3.96 mm | 0.156 in | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | Tin | Through Hole | 0.094 " | 2.39 mm | ||

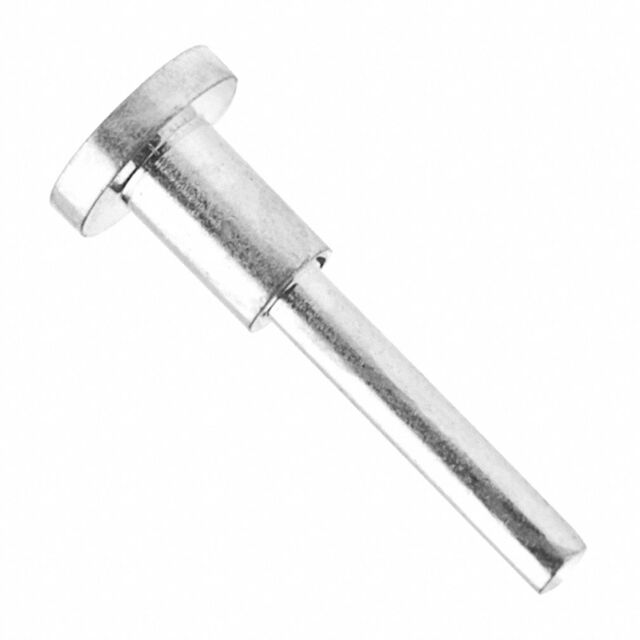

 Harwin Inc. | Single End | 6.93 mm | 0.273 " | Brass | 0.253 " | 6.43 mm | 0.063 in | 1.6 mm | PC Pin | Swage | Non-Insulated | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | Tin | Through Hole | 0.094 " | 2.39 mm | 0.81 mm | 0.032 in |
