MWA020009 Series

Catalog

AC/DC DESKTOP ADAPTER 9V 20W

Part	Weight	Weight	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	No Load Power Consumption	Form	Region Utilized	Input Connector	Applications	Input Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Polarization	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output

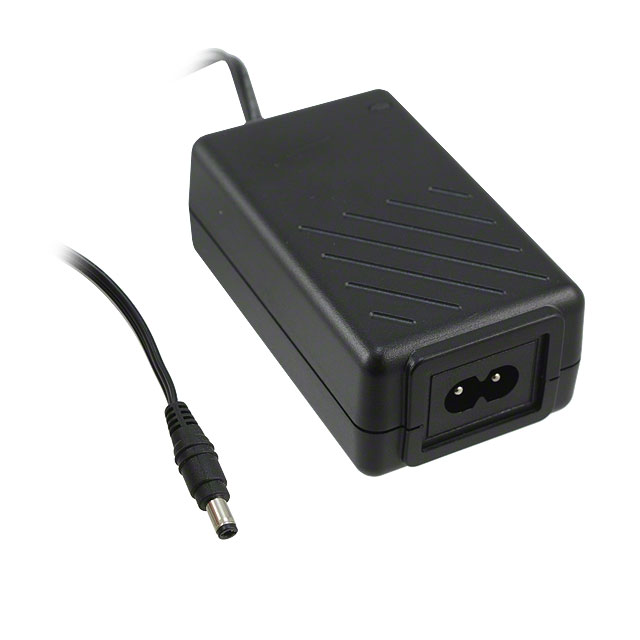

Inventus Power MWA020009B-10A	181 g	0.399 lb	20 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.83 m	72 in	300 mW	Desktop (Class II)	International	IEC 320-C8	Medical	Cord (Sold Separately)	2.22 A	1.3 in	87.7 mm	2.04 in	3.45 in	33 mm	51.8 mm	CB CE cTUVus	Positive Center	Level V	40 °C	0 °C	9 V

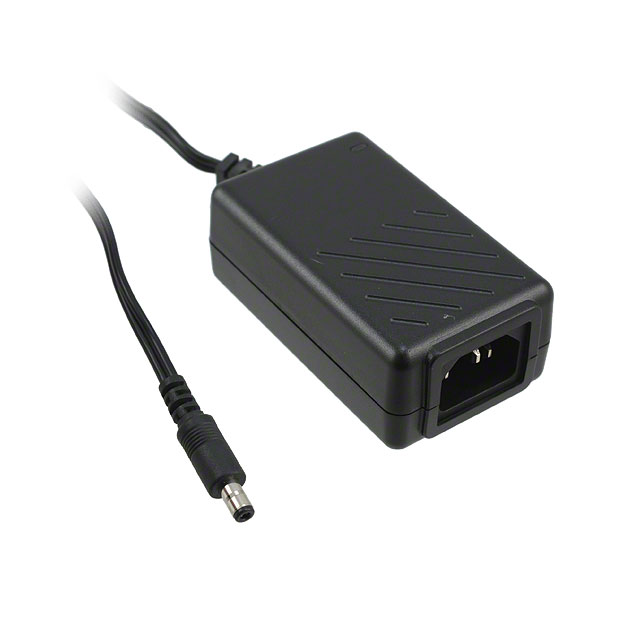

Inventus Power MWA020009A-10A	181 g	0.399 lb	20 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.83 m	72 in	300 mW	Desktop (Class I)	International	IEC 320-C14	Medical	Cord (Sold Separately)	2.22 A	1.3 in	87.7 mm	2.04 in	3.45 in	33 mm	51.8 mm	CB CE cTUVus	Positive Center	Level V	40 °C	0 °C	9 V
