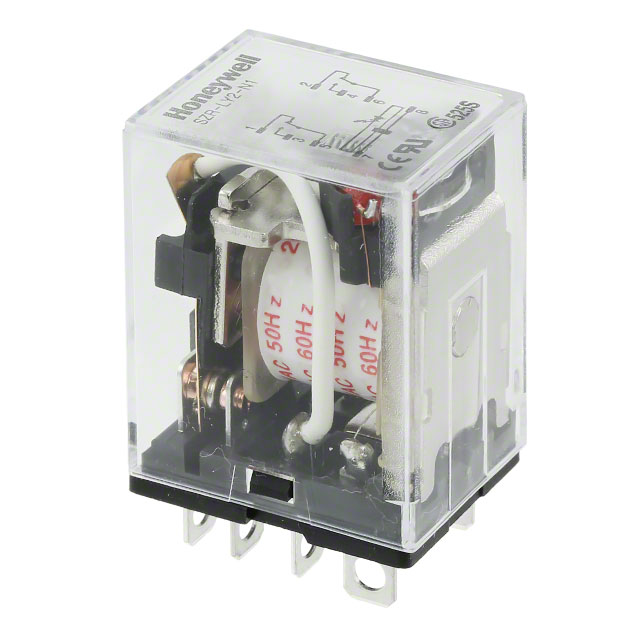

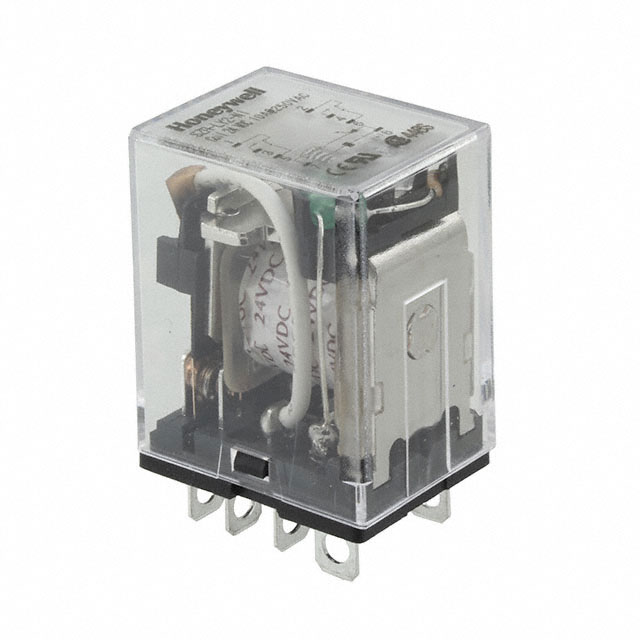

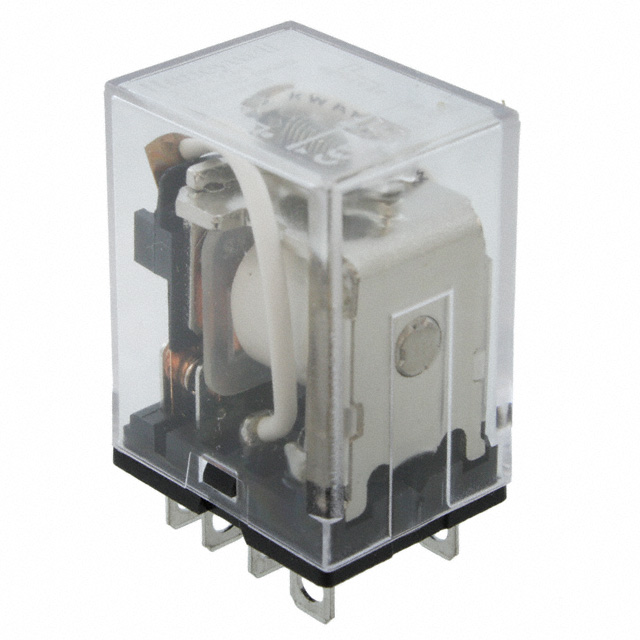

SZR-LY2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 24V
| Part | Coil Resistance | Contact Material | Relay Type | Termination Style | Mounting Type | Operate Time | Switching Voltage | Contact Form | Coil Current | Features | Load - Max Switching | Release Time | Coil Type | Must Operate Voltage | Contact Rating (Current) | Must Release Voltage | Approval Agency | Coil Voltage | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 650 Ohms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 40.9 mA | Lighted Indicator | 1250 W 2500 VA | 25 ms | Non Latching | 19.2 VDC | 10 A | 2.4 VDC | CE CSA UR | 24 VDC | ||
 Honeywell Sensing and Productivity Solutions | 12.95 kOhms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 5.3 mA | 1250 W 2500 VA | 25 ms | Non Latching | 176 VAC | 10 A | 66 VAC | CE CSA UR | 220 VAC/DC | |||
Honeywell Sensing and Productivity Solutions | 4.43 kOhms | Silver Cadmium Oxide (AgCdO) | General Purpose | PC Pin | Through Hole | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 27 mA | 1250 W 2500 VA | 25 ms | Non Latching | 96 VAC | 10 A | 36 VAC | CE CSA UR | 120 VAC | |||
Honeywell Sensing and Productivity Solutions | 46 Ohms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 261 mA | Lighted Indicator | 1250 W 2500 VA | 25 ms | Non Latching | 9.6 VAC/DC | 10 A | 3.6 VAC | CE CSA UR | 12 VAC | ||
Honeywell Sensing and Productivity Solutions | 40 Ohms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In Quick Connect | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 0.15 A | Lighted Indicator | 1250 W 2500 VA | 25 ms | Non Latching | 4.8 VDC | 10 A | 0.6 VDC | CE CSA UR | 0.197 in | 5 mm | |
 Honeywell Sensing and Productivity Solutions | 12.95 kOhms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 9.3 mA | Lighted Indicator | 1250 W 2500 VA | 25 ms | Non Latching | 176 VAC | 10 A | 66 VAC | CE CSA UR | 220 VAC/DC | ||
 Honeywell Sensing and Productivity Solutions | 180 Ohms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | 46 mA | 1250 W 2500 VA | 25 ms | Non Latching | 18 VAC | 10 A | 7.2 VAC | CE CSA UR | 24 VAC | |||
Honeywell Sensing and Productivity Solutions | 160 Ohms | Silver Cadmium Oxide (AgCdO) | General Purpose | Plug In | Socketable | 25 ms | 125 VDC 250 VAC | DPDT (2 Form C) | Lighted Indicator | 1250 W 2500 VA | 25 ms | Non Latching | 9.6 VDC | 10 A | 1.2 VDC | CE CSA UR | 12 VDC |
