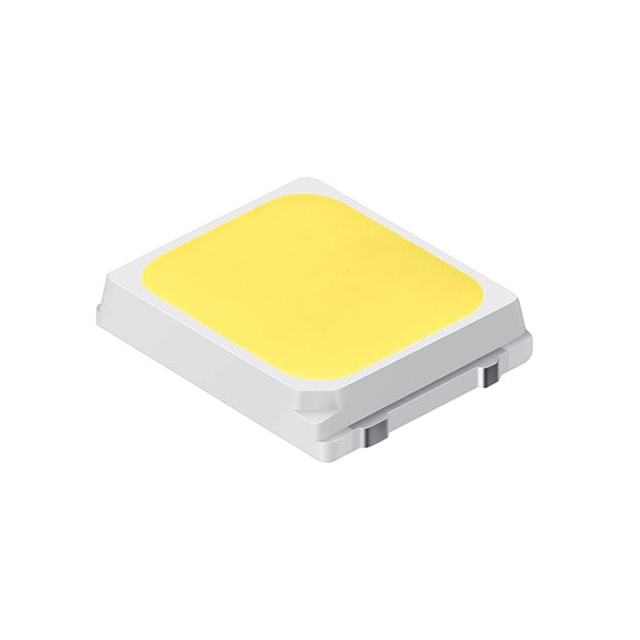

SPMWH1228 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

Catalog

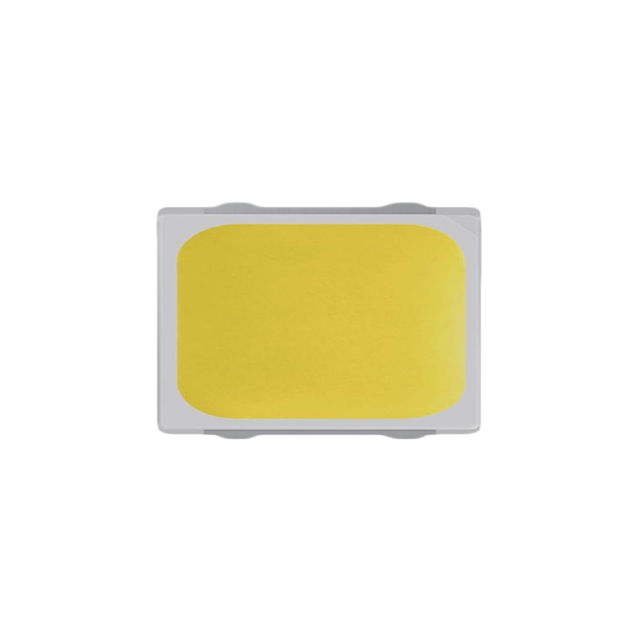

LED LM281B COOL WHITE 6500K 2835

...

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	CRI (Color Rendering Index)	Color	Current - Max [Max]	Flux @ 25°C, Current - Test	Supplier Device Package	Mounting Type	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWH1228FD7WAPKS4	17 °C/W	131 lm/W	6500 K	120 °	90	Cool White	160 mA	61 lm	2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V
Samsung Semiconductor, Inc. SPMWH1228FD5WAW0SA	25 °C/W	118 lm/W	2700 K	120 °	80	Warm White	160 mA	55 lm	2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	57 lm	53 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAVKS3	17 °C/W	118 lm/W	3000 K	120 °	90	Warm White	160 mA	55 lm	2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	57 lm	53 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAQKS4	25 °C/W	146 lm/W	5700 K	120 °	80	Cool White	160 mA		2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	70 lm	66 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAWKSE	25 °C/W	135 lm/W	2700 K	120 °	80	Warm White	160 mA		2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	65 lm	61 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAUMSC	25 °C/W	138 lm/W	3500 K	120 °	80	Warm White	160 mA	64 lm	2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V
Samsung Semiconductor, Inc. SPMWH1228FD5WAT0SG	25 °C/W	160 lm/W	4000 K	120 °	80	Neutral White	160 mA	72 lm	2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3 V
Samsung Semiconductor, Inc. SPMWH1228FD5WAQMSE	25 °C/W	148 lm/W	5700 K	120 °	80	Cool White	160 mA		2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	71 lm	67 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAQMSG	25 °C/W	136 lm/W	5700 K	120 °	90	Cool White	160 mA		2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3 V	64 lm	61 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAR0S4	17 °C/W	135 lm/W	5000 K	120 °	90	Cool White	160 mA		2835	Surface Mount	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	0.03 "	0.75 mm	1113 (2835 Metric)	3.1 V	65 lm	61 lm
