NPPN082 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 16POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post [custom]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Contact Type	Material Flammability Rating	Insulation Color	Number of Rows [custom]	Insulation Height [z]	Contact Length - Post	Current Rating (Amps)	Insulation Height	Features
Sullins Connector Solutions NPPN082AFEN-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Gold	2 mm	0.079 in	Gold	4.3 mm	0.169 "	0.11 in	2.79 mm	-40 C	105 ░C	All	Through Hole	Header	Flash	Push-Pull	0.079 "	2 mm	16	Solder	Female Socket	UL94 V-0	Black	2

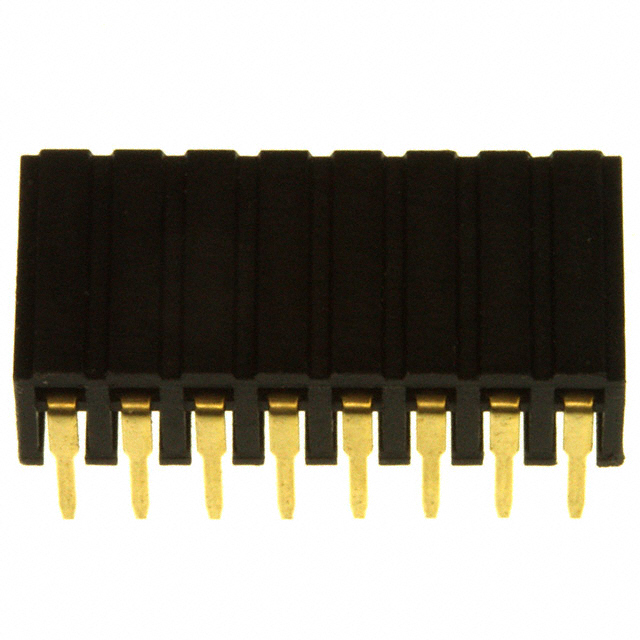

Sullins Connector Solutions NPPN082FJFN-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Gold	2 mm	0.079 in	Gold	4.85 mm			3 mm	-40 C	105 ░C	All	Right Angle Through Hole	Header	Flash	Push-Pull	0.079 "	2 mm	16	Solder	Female Socket	UL94 V-0	Black	2	0.191 in	0.118 in

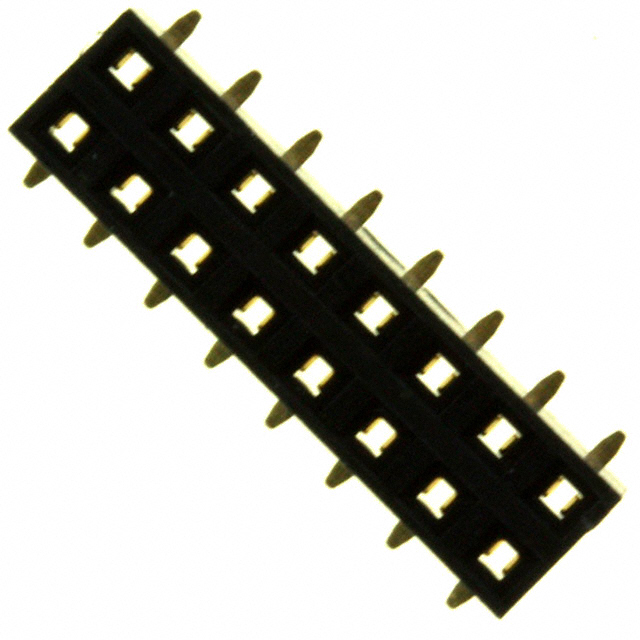

Sullins Connector Solutions NPPN082FFKS-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Gold	2 mm	0.079 in	Gold	0.173 in				-40 C	105 ░C	All	Surface Mount	Header	Flash	Push-Pull	0.079 "	2 mm	16	Solder	Female Socket	UL94 V-0	Black	2			2 A	4.4 mm

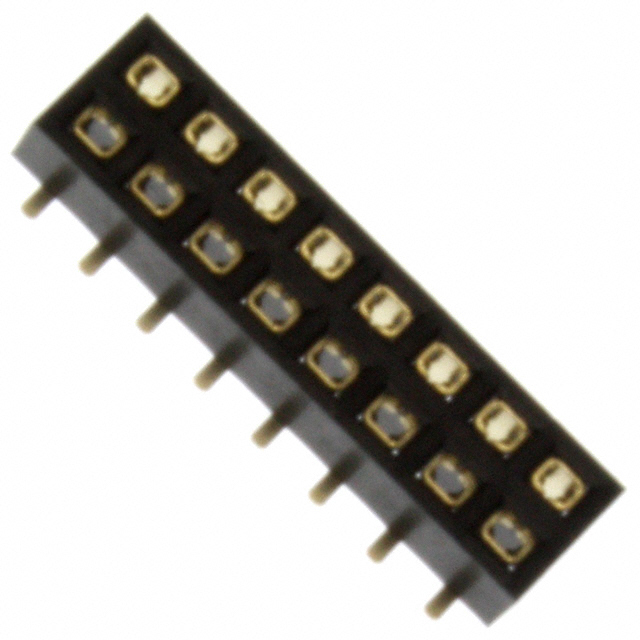

Sullins Connector Solutions NPPN082GHNP-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Gold	2 mm	0.079 in	Gold					-40 C	105 ░C	All	Surface Mount	Header Bottom Entry	Flash	Push-Pull	0.079 "	2 mm	16	Solder	Female Socket	UL94 V-0	Black	2					Board Guide
