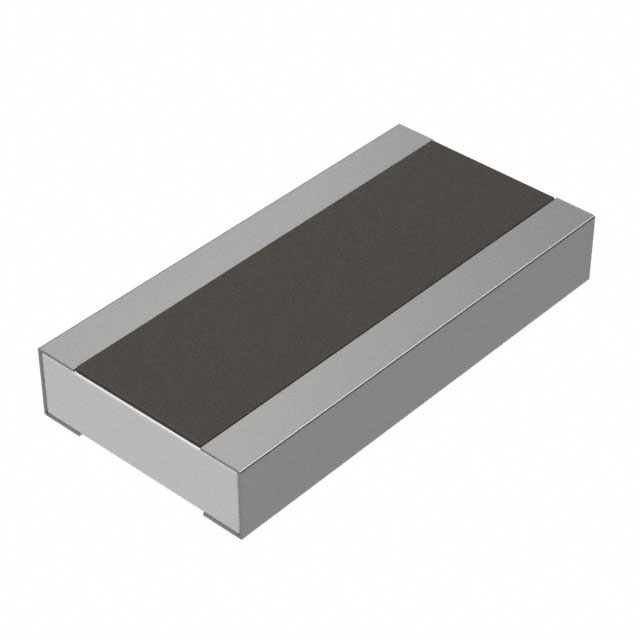

WK73S2B Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 191M OHM 1% 3/4W 1206

...

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Features	Composition	Resistance
KOA Speer Electronics, Inc. WK73S2BTTDR191F	1 %	155 C	-55 C	0612	200 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	191 mOhms
KOA Speer Electronics, Inc. WK73S2BTTD3R83F	1 %	155 C	-55 C	0612	100 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	3.83 Ohms
KOA Speer Electronics, Inc. WK73S2BTTD31L6F	1 %	155 C	-55 C	0612	200 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	31.6 mOhms
KOA Speer Electronics, Inc. WK73S2BTTDR174F	1 %	155 C	-55 C	0612	200 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	174 mOhms
KOA Speer Electronics, Inc. WK73S2BTTD3R01F	1 %	155 C	-55 C	0612	100 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	3.01 Ohms
KOA Speer Electronics, Inc. WK73S2BTTDR249F	1 %	155 C	-55 C	0612	200 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	249 mOhms
KOA Speer Electronics, Inc. WK73S2BTTD3R90F	1 %	155 C	-55 C	0612	100 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	3.9 Ohms
KOA Speer Electronics, Inc. WK73S2BTTD42L2F	1 %	155 C	-55 C	0612	200 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	42.2 mOhms
KOA Speer Electronics, Inc. WK73S2BTTD13LJ	5 %	155 C	-55 C	0612	800 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	13 mOhms
KOA Speer Electronics, Inc. WK73S2BTTD1R8J	5 %	155 C	-55 C	0612	100 ppm/°C	3.2 mm	0.063 "	1.6 mm	0.126 in	AEC-Q200	0612 Wide 1206 (3216 Metric)	0.7 mm	0.028 "	2	3/4W	0.75 W	Automotive AEC-Q200 Moisture Resistant	Thick Film	1.8 Ohms
