R12115 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

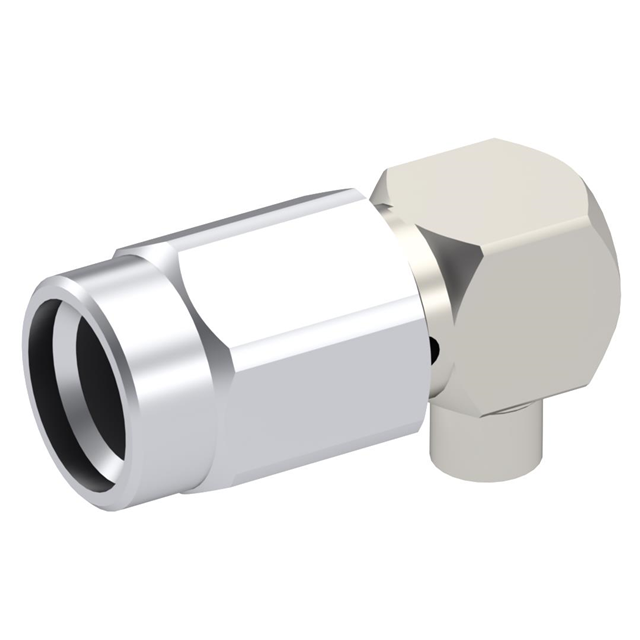

SSMA / RIGHT ANGLE PLUG SOLDER T
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Finish | Connector Style | Contact Termination | Frequency - Max [Max] | Center Contact Material | Cable Group | Connector Type | Impedance | Number of Ports | Fastening Type | Mounting Type | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1000 | Gold | Beryllium Copper Brass | 115 °C | -65 ░C | 250 V | Nickel | SSMA | Solder | 12.4 GHz | Beryllium Copper | RG-405 (.085" Semi Rigid) | Plug Male Pin | 50 Ohms | 1 | Threaded | Free Hanging (In-Line) Right Angle | Solder | Silver |
