2350398 Series

Catalog

6 POS SPRING TB PLUG PITCH 3.50

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Insulation Height	Insulation Height	Contact Mating Finish	Wire Strip Length [Min]	Wire Strip Length [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Color	Type	Number of Levels	Contact Material	Features	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Voltage - UL	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

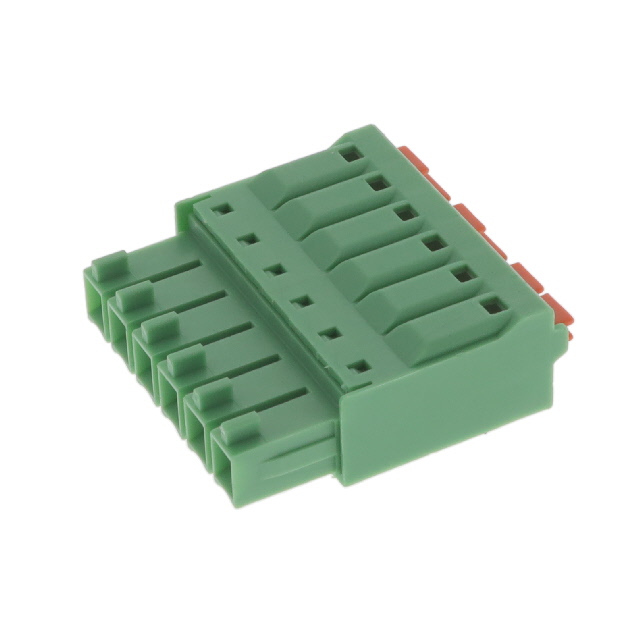

TE Connectivity Raychem Cable Protection 2350398-6	24 AWG	16 AWG	6	0.303 in	7.7 mm	Tin	9 mm	10 mm	Free Hanging (In-Line)	-40 °C	105 ░C	3.5 mm	0.138 in	6	Green	Plug Female Sockets	1	Copper Alloy	Push Button Actuated	Push-In Spring Screwless - Leg Spring	1.31 mm²	0.05 mm²	8 A	150 V	UL94 V-0

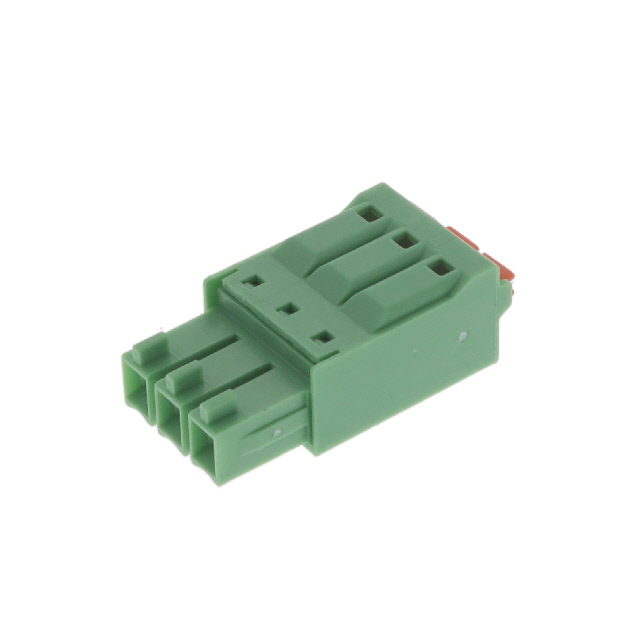

TE Connectivity Raychem Cable Protection 2350398-3	24 AWG	16 AWG	3	0.303 in	7.7 mm	Tin	9 mm	10 mm	Free Hanging (In-Line)	-40 °C	105 ░C	3.5 mm	0.138 in		Green	Plug Female Sockets	1	Copper Alloy	Push Button Actuated	Push-In Spring Screwless - Leg Spring			8 A	150 V	UL94 V-0	1.31 mm˛	0.05 mm˛
