A2D250 Series

Catalog

AC AXIAL FAN

Part	Material - Blade	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	Fan Type	Static Pressure	Static Pressure	Voltage - Rated	Air Flow	Air Flow	Size / Dimension [diameter]	Size / Dimension	Noise	RPM	Bearing Type	Termination	Power (Watts)	Ingress Protection	Approval Agency	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Features	Voltage - Rated [Max]	Voltage - Rated [Min]	Termination	Weight	Weight

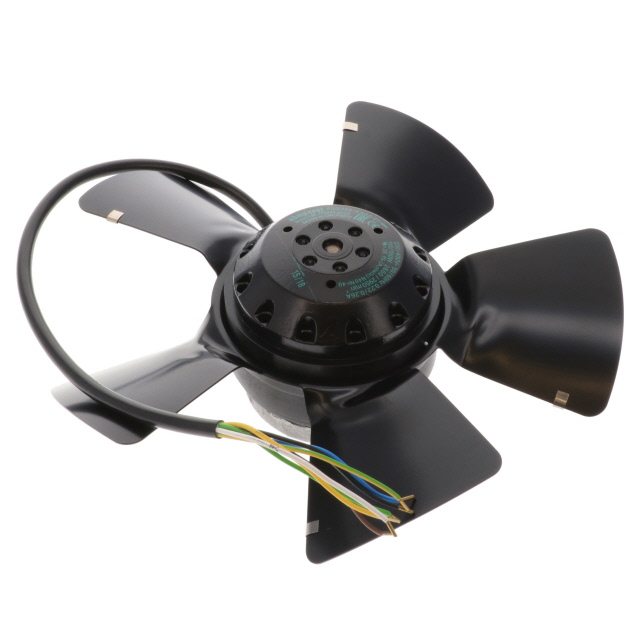

ebm-papst Inc. A2D250-AA02-01	Steel	0.26 A	40 °C	-25 °C	-25 °C	40 °C	83 mm	3 Phase Tubeaxial	1.204 in H2O	300 Pa	400 VAC	27.79 m³/min	992.5 CFM	250 mm	Round	72 dB(A)	2950 RPM	Ball	7 Wire Leads with Splice Terminals	160 W	IP44	CCC CE EAC

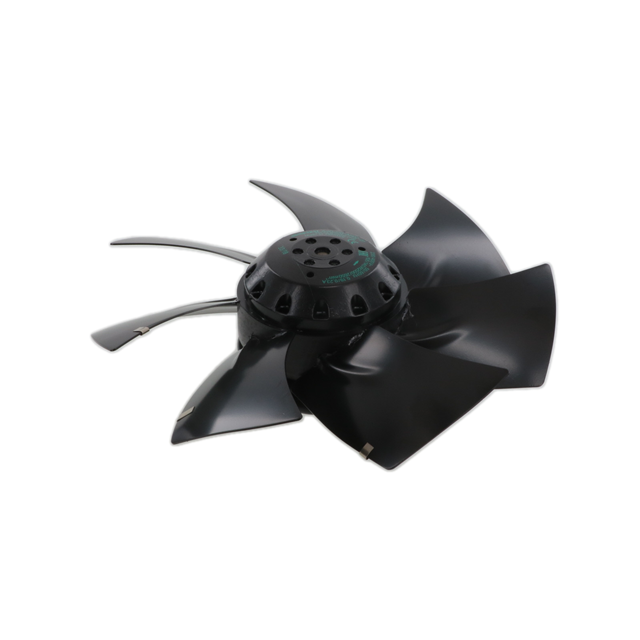

ebm-papst Inc. A2D250-AH02-01	Steel						83 mm	3 Phase Tubeaxial	0.602 in H2O	150 Pa		30.18 m³/min	1077.9 CFM	250 mm	Round		2650 RPM	Ball	7 Wire Leads with Splice Terminals	145 W	IP44	CCC CE EAC	0.39 A	0.23 A	Dual Voltage	400 VAC	230 VAC
ebm-papst Inc. A2D250-AI14-10	Steel	0.38 A	60 °C	-25 °C			83 mm	3 Phase Tubeaxial	0.44 in H2O	109.6 Pa	480 VAC			250 mm	Round		2580 RPM	Ball	4 Wire Leads with Splice Terminals	140 W	IP44	CE CSA UL
ebm-papst Inc. A2D250-AD26-05	Steel	320 mA					83 mm	3 Phase Tubeaxial	0.743 in H2O	185 Pa	480 VAC			250 mm	Round		2920 RPM	Ball	4 Wire Leads with Splice Terminals	230 W	IP44	CCC CE CSA UL

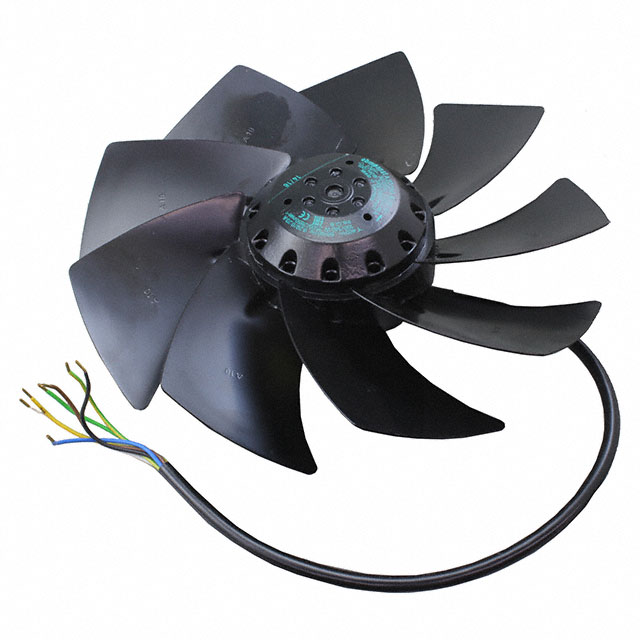

ebm-papst Inc. A2D250-AI02-01	Steel						83 mm	3 Phase Tubeaxial	0.602 in H2O	150 Pa		32.16 mł/min	1148.6 CFM	250 mm	Round	70 dB(A)	2650 RPM	Ball	7 Wire Leads with Splice Terminals	140 W	IP44	CCC CE EAC	0.4 A	0.23 A	Dual Voltage	400 VAC	230 VAC
ebm-papst Inc. A2D250-AA02-18	Steel		40 °C	-25 °C	-25 °C	40 °C	83 mm	3 Phase Tubeaxial	1.204 in H2O	300 Pa				250 mm	Round		2950 RPM	Ball		160 W	IP44	CCC CE EAC	0.45 A	0.26 A	Dual Voltage	400 VAC	230 VAC	7 Terminals
ebm-papst Inc. A2D250-AA02-47	Steel	0.26 A	40 °C	-25 °C	-25 °C	40 °C	82.5 mm	3 Phase Tubeaxial	1.204 in H2O	299.9 Pa				250 mm	Round		2950 RPM	Ball		160 W	IP44	CE			Dual Voltage	400 VAC	230 VAC	7 Terminals	4.8 lbs	2.2 kg
ebm-papst Inc. A2D250-AA06-71	Steel		65 °C	-25 °C	-25 °C	65 °C	83 mm	3 Phase Tubeaxial	0.502 in H2O	125 Pa				250 mm	Round		2900 RPM	Ball	Terminal Block	150 W	IP44	CE	0.38 A	0.22 A	Dual Voltage	460 VAC	265 VAC

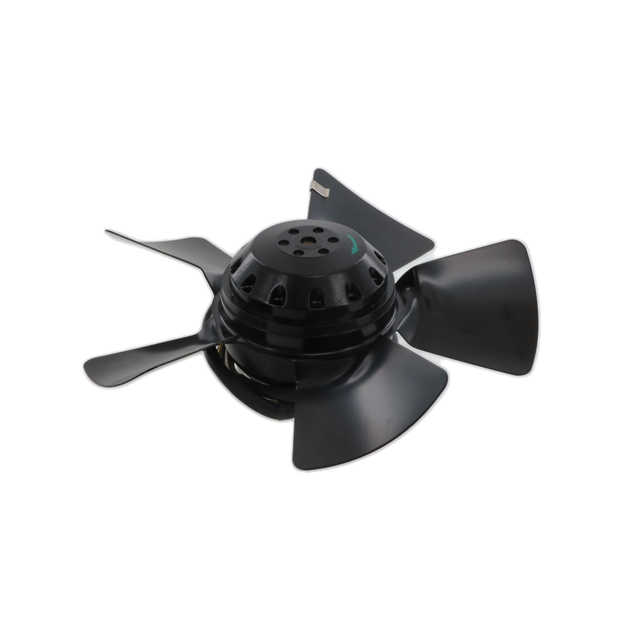

ebm-papst Inc. A2D250-AA06-52	Steel		65 °C	-25 °C	-25 °C	65 °C	83 mm	3 Phase Tubeaxial	0.502 in H2O	125 Pa				250 mm	Round		2900 RPM	Ball	9 Wire Leads with Splice Terminals	150 W	IP44	CSA UL	0.38 A	0.22 A	Dual Voltage Thermal Overload Protector (TOP)	460 VAC	266 VAC

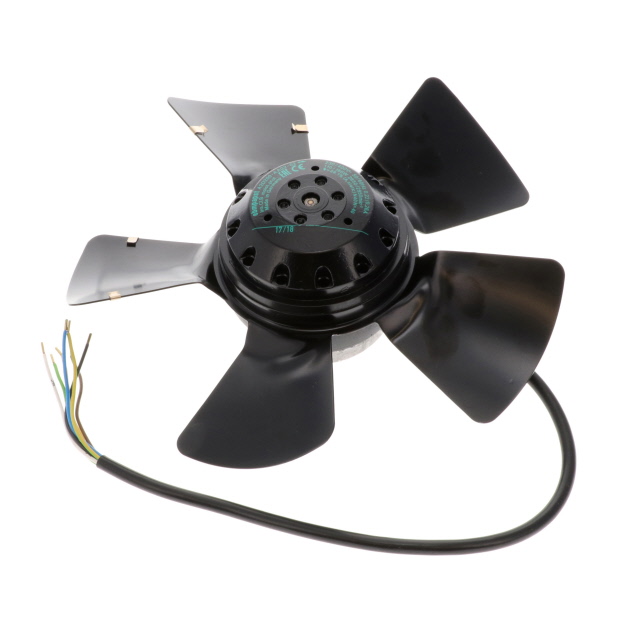

ebm-papst Inc. A2D250-AA02-02	Steel	0.26 A	40 °C	-25 °C	-25 °C	40 °C	83 mm	3 Phase Tubeaxial	1.204 in H2O	300 Pa	400 VAC	30.43 m³/min	1086.7 CFM	250 mm	Round	75 dB(A)	2950 RPM	Ball	7 Wire Leads with Splice Terminals	160 W	IP44	CCC CE EAC
