ACS376 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K

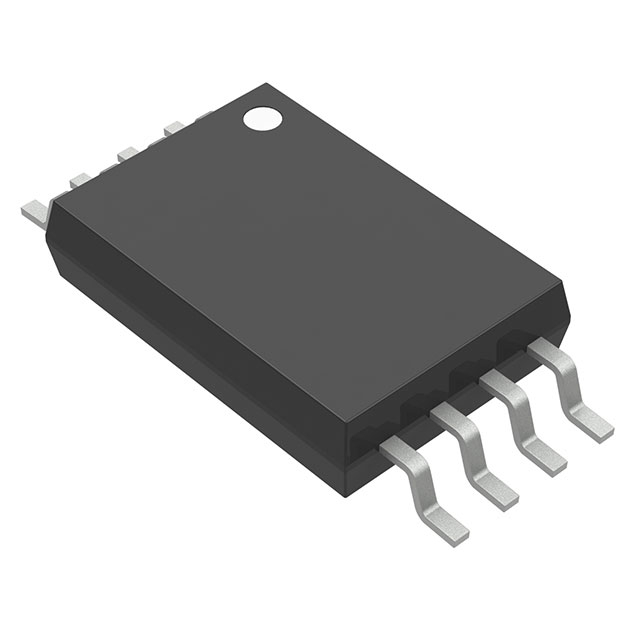

SENSOR CURRENT HALL 20MT 8TSSOP
| Part | Qualification | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Linearity | Number of Channels [custom] | Current - Supply (Max) [Max] | Grade | Accuracy | Sensor Type | For Measuring | Polarization | Package / Case | Package / Case | Package / Case | Output | Current - Sensing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | AEC-Q100 | 5.5 V | 4.5 V | 10 μg/m3 | Surface Mount | -40 C | 150 °C | 8-TSSOP | 1 % | 1 | 16 mA | Automotive | 0.02 % FS | Hall Effect | AC DC | Bidirectional | 0.173 in | 8-TSSOP | 4.4 mm | Ratiometric Voltage | 20 mT |
Allegro MicroSystems | AEC-Q100 | 5.5 V | 4.5 V | 5 mV/°C | Surface Mount | -40 C | 150 °C | 8-TSSOP | 1 % | 1 | 16 mA | Automotive | 0.02 % FS | Hall Effect | AC DC | Bidirectional | 0.173 in | 8-TSSOP | 4.4 mm | Ratiometric Voltage | 40 mT |
Allegro MicroSystems | AEC-Q100 | 3.6 V | 3 V | 10 μg/m3 | Surface Mount | -40 C | 150 °C | 8-TSSOP | 1 % | 1 | 16 mA | Automotive | 0.02 % FS | Hall Effect | AC DC | Bidirectional | 0.173 in | 8-TSSOP | 4.4 mm | Ratiometric Voltage | 13.5 mT |
Allegro MicroSystems | AEC-Q100 | 5.5 V | 4.5 V | 15 mV/g | Surface Mount | -40 C | 150 °C | 8-TSSOP | 1 % | 1 | 16 mA | Automotive | 0.02 % FS | Hall Effect | AC DC | Unidirectional | 0.173 in | 8-TSSOP | 4.4 mm | Ratiometric Voltage | 26.5 mT |
Allegro MicroSystems | AEC-Q100 | 5.5 V | 4.5 V | 15 mV/g | Surface Mount | -40 C | 150 °C | 8-TSSOP | 1 % | 1 | 16 mA | Automotive | 0.02 % FS | Hall Effect | AC DC | Bidirectional | 0.173 in | 8-TSSOP | 4.4 mm | Ratiometric Voltage | 13 mT |
