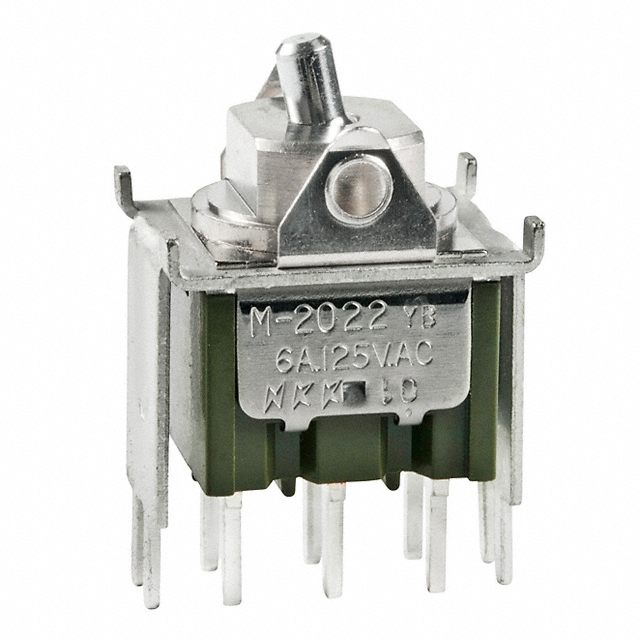

M2022TZ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPDT 6A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Termination Style | Color - Actuator/Cap | Mounting Type | Approval Agency | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Features | Actuator Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 25000 Steps | 30 V | PC Pin | Red | Through Hole | CSA UL | DPDT | 85 °C | -30 ░C | 4 A 6 A | 125 V | On-On | Epoxy Sealed Terminals | Concave | No Marking |
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | PC Pin | Black | Through Hole | CSA UL | DPDT | 85 °C | -30 ░C | 4 A 6 A | 125 V | On-On | Epoxy Sealed Terminals | Concave | No Marking |
NKK Switches | 50000 Cycles | 25000 Steps | PC Pin | Black | Through Hole | CSA UL | DPDT | 85 °C | -30 ░C | 6 A | 125 V | On-On | Epoxy Sealed Terminals | Concave | No Marking | |
NKK Switches | 50000 Cycles | 25000 Steps | PC Pin | Through Hole | CSA UL | DPDT | 85 °C | -30 ░C | 6 A | 125 V | On-On | Epoxy Sealed Terminals | Actuator Arm Cap Required | Varies by Cap | ||
 NKK Switches | 50000 Cycles | 25000 Steps | 30 V | PC Pin | Through Hole | CSA UL | DPDT | 85 °C | -30 ░C | 4 A 6 A | 125 V | On-On | Epoxy Sealed Terminals | Actuator Arm Cap Required | Varies by Cap |
