2342079 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PLUGGABLE TERMINAL BLOCKS 13POS HDR 90 DEG,HT 5.00MM PIT.,TL 2.6MM

Part	Color	Type	Pitch [x]	Pitch [x]	Housing Material	Contact Material	Positions Per Level	Features	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Header Orientation	Voltage - UL	Current - UL	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Number of Positions	Number of Levels	Number of Positions

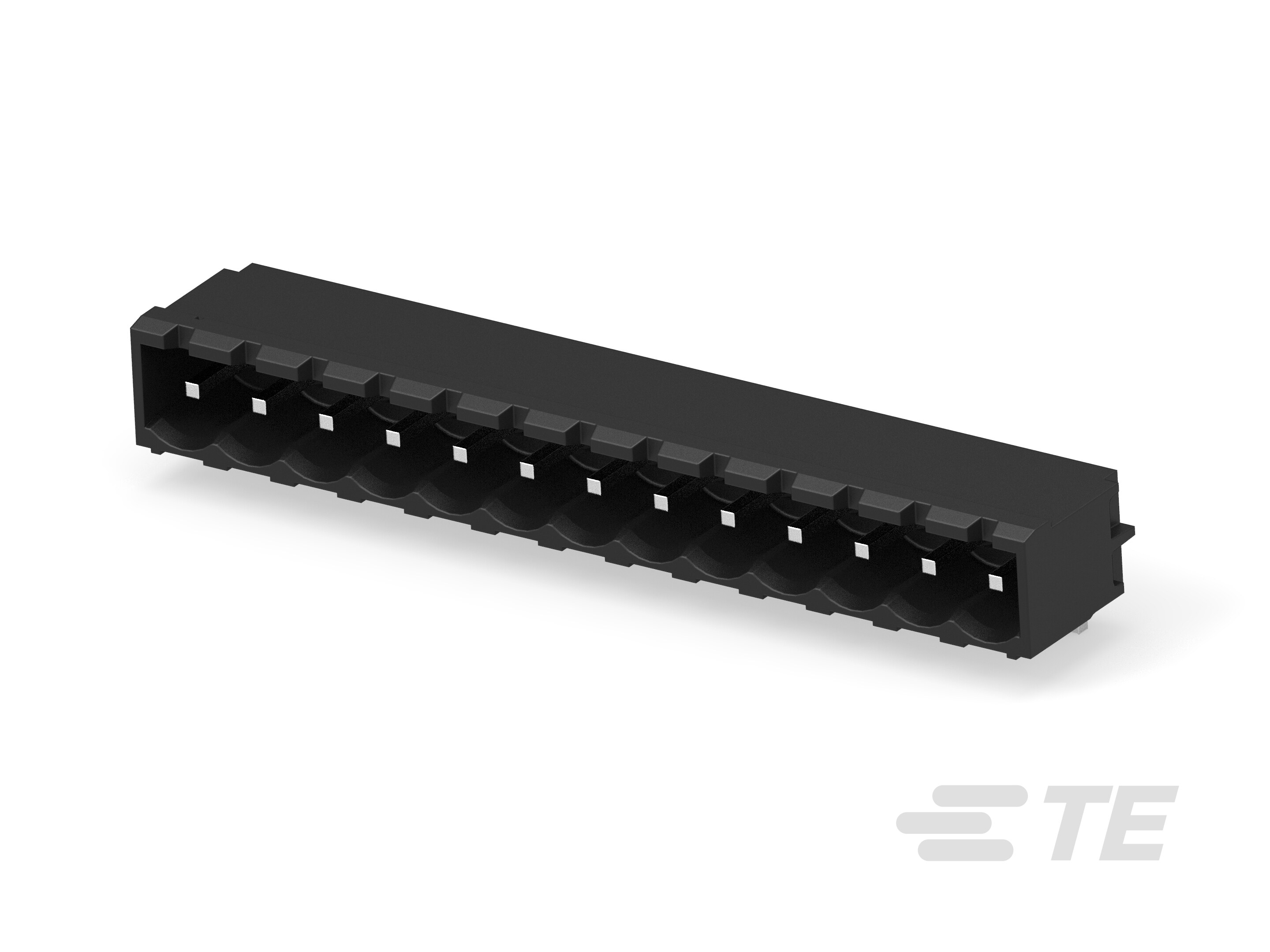

TE Connectivity Raychem Cable Protection 1-2342079-3	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	13	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	13	1
TE Connectivity Raychem Cable Protection 1-2342079-7	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	17	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0		1

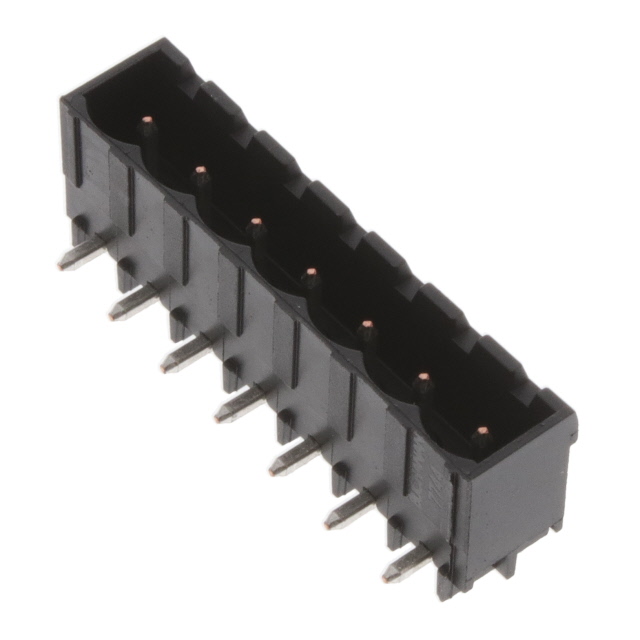

TE Connectivity Raychem Cable Protection 2342079-7	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	7	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	7	1

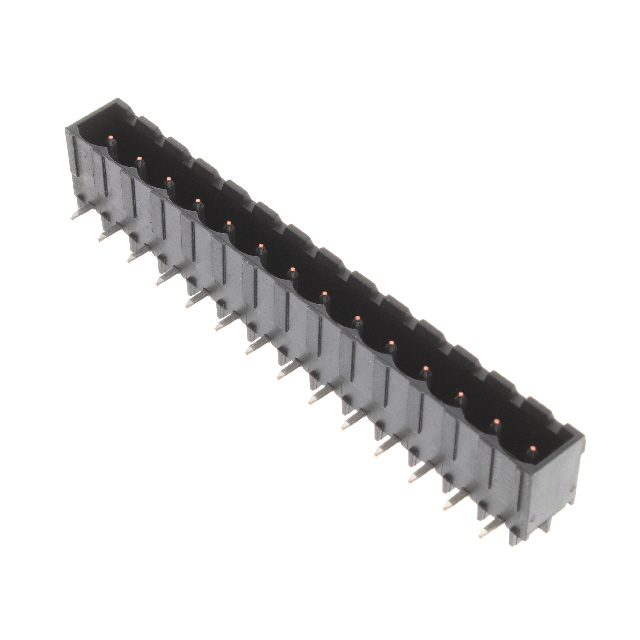

TE Connectivity Raychem Cable Protection 1-2342079-4	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	14	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	14	1
TE Connectivity Raychem Cable Protection 1-2342079-1	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	11	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	11	1
TE Connectivity Raychem Cable Protection 1-2342079-8	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	18	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	18	1
TE Connectivity Raychem Cable Protection 1-2342079-9	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	19	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	19	1
TE Connectivity Raychem Cable Protection 1-2342079-0	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	10	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0	10	1
TE Connectivity Raychem Cable Protection 1-2342079-6	Black	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Polyamide (PA) Nylon	Copper Alloy	16	High Temp Housing	Tin	0.102 in	2.6 mm	8.66 mm	0.341 in	90° Right Angle	300 V	11 A	Solder	-40 °C	105 ░C	Through Hole	UL94 V-0		1	16
