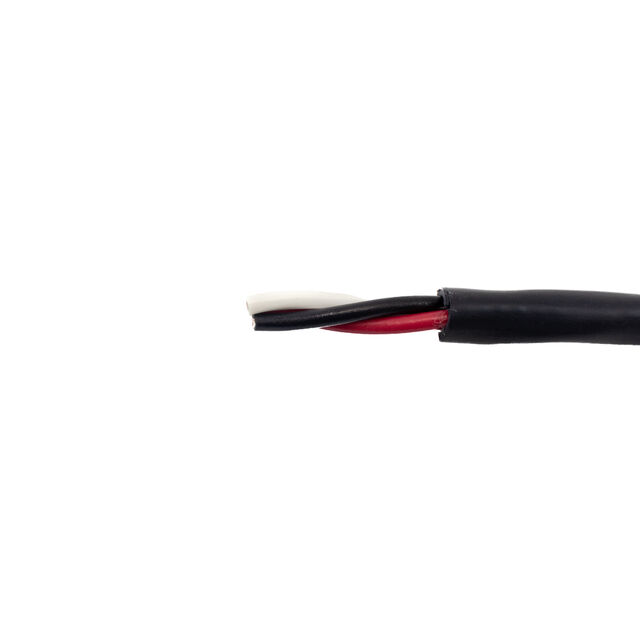

25062 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 2
| Part | Voltage | Number of Conductors | Wire Gauge | Jacket Color | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings | Conductor Insulation | Cable Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ||||||||||||||||||||
 ALPHA WIRE | 300 VDC | 2 | 18 AWG | Slate | Copper Tinned | -30 ░C | 90 °C | 0.813 mm | 0.032 in | Biological Compatibility Rip Cord | ISO 10993 UL Style 20668 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 304.8 m | 1000 ft | 5.74 mm | 0.226 in | Polyurethane (PU) | 16 | 30 AWG |
